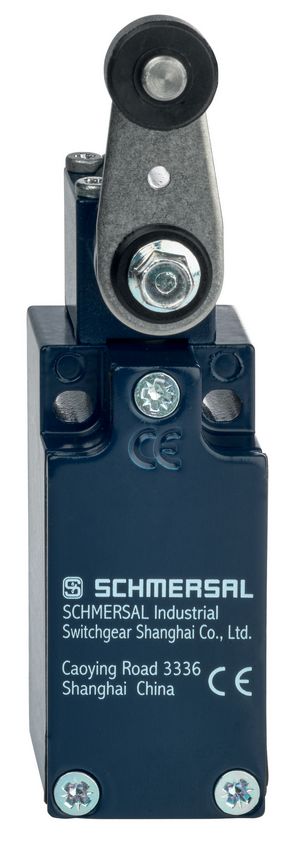

Schmersal ZV14H 235-11Z position switch metal roller black 101161649

The position switch ZV14H 235-11Z-M20 was a high-quality product designed for safety-critical applications. Ist robust zinc die-cast housing, roller lever, and IP65 IP65 protection made it suitable for industrial environments. With the capability to handle up to 20,000,000 mechanical operations, it offered exceptional durability. However, the ZV14H 235-11Z-M20 is no longer available.

Technical Data:

Availability:

• Note: No longer available!

Product Designation:

• ZV14H 235-11Z-M20

Article Number:

• 101161649

EAN:

• 4030661196220

Certifications and Standards:

• cULus, CCC
• BG-GS-ET-15, EN ISO 13849-1, EN IEC 60947-5-1

Housing Design:

• Standard design

Materials:

• Housing: Metal, zinc die-cast
• Lever: Metal
• Roller: Plastic

Gross Weight:

• 205 g

Features:

• Safety Functions: Yes
• Number of Safety Contacts: 1
• Number of Auxiliary Contacts: 1

Safety Considerations:

• Service Life: 20 years
• B10D NC: 20,000,000 cycles

Mechanical Data:

• Actuator: Roller lever
• Mechanical Lifespan: Min. 20,000,000 cycles
• Actuation Speed:
- Minimum: 687 mm/min
- Maximum: 1 m/s (at 30° approach angle)

• Actuation Torque: Min. 0.2 Nm
• Positive Opening Torque: 0.2 Nm

Connection Technology:

• Connection Type: Screw terminal M20 x 1.5
• Conductor Cross-section:
- Minimum: 0.75 mm²
- Maximum: 2.5 mm²


Dimensions:

• Length: 46 mm
• Width: 30 mm
• Height: 114 mm

Environmental Conditions:

• Protection Class: IP65, IP65
• Ambient Temperature: -30 °C to +80 °C

Insulation Ratings:

• Rated Insulation Voltage: 500 V
• Rated Impulse Withstand Voltage: 6 kV

Electrical Data:

• Thermal Continuous Current: 10 A
• Rated Short-circuit Current: 1,000 A
• Voltage (AC-15): 230 VAC, Current: 4 A
• Voltage (DC-13): 24 VDC, Current: 1 A
• Switching Elements: 1 NO, 1 NC
• Switching Principle: Snap-action
• Maximum Switching Frequency: 5,000 /h
• Bounce Time: Max. 3 ms
• Switching Time: Max. 5.5 ms
• Contact Material: Silver

Type: ZV14H235-11Z
