Schmersal UVH 432Y position switch medium heavy roller swivel h.101161093

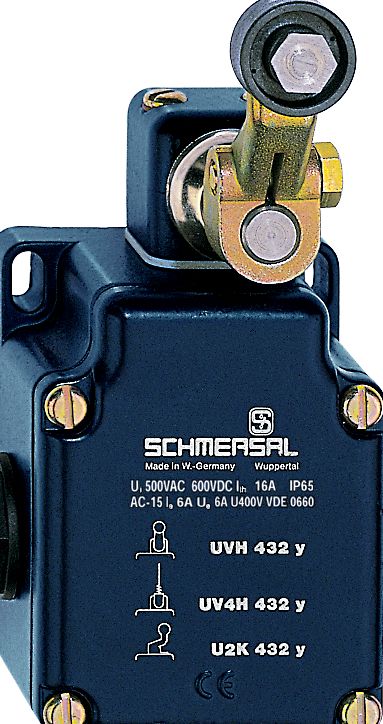

The position switch UVH 432Y-M20 is a compact and durable solution for industrial applications. Its housing is made from robust die-cast aluminum with a painted finish, ensuring long-lasting performance. Featuring a roller lever actuator with a plastic roller, it enables precise switching operations. With an IP65 protection rating, the switch is protected against dust and water splashes and is suitable for operation in a temperature range of -20 °C to +60 °C. Its mechanical lifespan of at least 10 million cycles makes it a reliable component for demanding environments.

Technical Data:

Product Designation:

• UVH 432Y-M20

Article Number:

• 101161093

EAN:

• 4030661192178

Certifications and Standards:

• cULus
• EN IEC 60947-5-1

Operating Principle:

• Mechanical

Plunger Shape:

• Roller

Materials:

• Housing: Die-cast aluminum
• Housing Coating: Painted
• Roller: Plastic

Gross Weight:

• 420 g

Mechanical Data:

• Actuating Element: Roller lever actuator
• Mechanical Lifespan: min. 10,000,000 cycles
• Approach Angle: 30° (left and right)
• Contact Opening Width: 2 x 1.5 mm
• Actuating Speed: 1 mm/min to 3 m/s
• Note: Speed at a vertical approach angle

Electrical Data:

• Thermal Continuous Current: 16 A
• Switching Element: Normally Closed (NC)
• Switching Principle: Slow-action switching
• Contact Material: Silver

Connection Technology:

• Connection Type: Screw terminal M20 x 1.5
• Connection Cross-section: 1.5 mm² to 2.5 mm² (including ferrules)
• Conductor Cross-section: 13 AWG

Dimensions:

• Length: 50 mm
• Width: 62 mm
• Height: 138 mm
• Roller Width: 8.5 mm
• Roller Diameter: 20 mm

Environmental Conditions:

• Protection Class: IP65
• Ambient Temperature: -20 °C to +60 °C

Insulation Ratings:

• Rated Insulation Voltage Ui: 500 V

Note:

• Contact type and switching points can be factory-adjusted upon request.

Type: UVH 432Y
