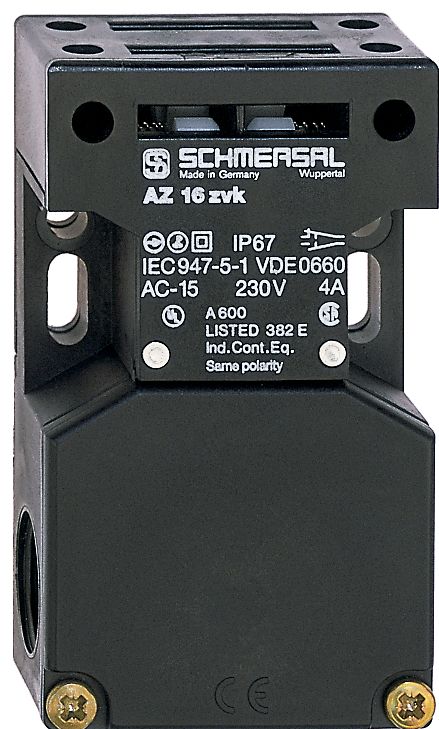

Schmersal 101157381 Safety Switch, 16-AZ-M20 02ZVRK
|
43,09 EUR |
|||||||||||
|
( 51,28 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 228529 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101157381 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101157381:
The AZ 16-02ZVRK-M20 safety switch is an electromechanical interlocking switch designed for applications requiring a high level of safety. Equipped with two forced-opening safety contacts and an IP67 protection rating, it ensures reliable operation and durability. Its robust glass-fiber reinforced thermoplastic construction and universal applicability make it ideal for industrial environments. The switch complies with EN ISO 13849-1 and EN ISO 14119 standards, achieving a Performance Level up to c (Category 1) in single-channel use and up to d (Category 3) in dual-channel setups.
Technical Data:
Product Designation:
- AZ 16-02ZVRK-M20
Article Number:
- 101157381
EAN:
- 4030661180113
eCl@ss Numbers:
- Version 12.0: 27-27-26-02
- Version 11.0: 27-27-26-02
- Version 9.0: 27-27-26-02
ETIM Numbers:
- Version 7.0: EC002592
- Version 6.0: EC002592
Approvals and Standards:
- Certifications: cULus, CCC
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
General Data:
- Coding Level: Low
- Operating Principle: Electromechanical
- Housing Material: Plastic, glass-fiber reinforced thermoplastic
- Gross Weight: 115 g
General Features:
- Number of Approach Directions: 3
- Safety Contacts: 2
- Cable Entries: 3
Safety Considerations:
- Performance Level (Single-Channel): Up to c (Category 1)
- Performance Level (Dual-Channel): Up to d (Category 3)
- B10D NC Contacts: 2,000,000 operations
- B10D NO Contacts: 1,000,000 operations (at 10% Ie and resistive load)
- Service Life: 20 years
Mechanical Data:
- Mechanical Lifespan: 1,000,000 operations
- Latching Force: 30 N
- Forced Opening Distance: 8 mm
- Maximum Actuation Speed: 2 m/s
- Mounting: 2x M6 screws
Connection Technology:
- Cable Entries: 3 x M20 x 1.5
- Connection Type: Screw terminals
- Conductor Cross-Section: 0.25–2.5 mm²
Dimensions:
- Length: 30 mm
- Width: 52 mm
- Height: 90 mm
Environmental Conditions:
- Protection Class: IP67
- Operating Temperature: -30 °C to +80 °C
- Storage Temperature: -40 °C to +85 °C
Electrical Data:
- Thermal Rated Current: 10 A
- Voltage (AC-15): 230 VAC
- Current (AC-15): 4 A
- Voltage (DC-13): 24 VDC
- Current (DC-13): 4 A
- Maximum Switching Frequency: 4,000 /h
Included Items:
- Slot closures for dust-tight sealing of unused openings
Type: AZ 16-02ZVRK-M20
Questions & answers
What is the delivery time of Schmersal 101157381 Safety Switch, 16-AZ-M20 02ZVRK?
The article Schmersal 101157381 Safety Switch, 16-AZ-M20 02ZVRK is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101157381 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal 101157381 Safety Switch, 16-AZ-M20 02ZVRK always at the best possible price. We can give you a discount of 2% on Schmersal 101157381 Safety Switch, 16-AZ-M20 02ZVRK if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Schmersal 101157381 Safety Switch, 16-AZ-M20 02ZVRK we can offer you a price of 41,80 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
