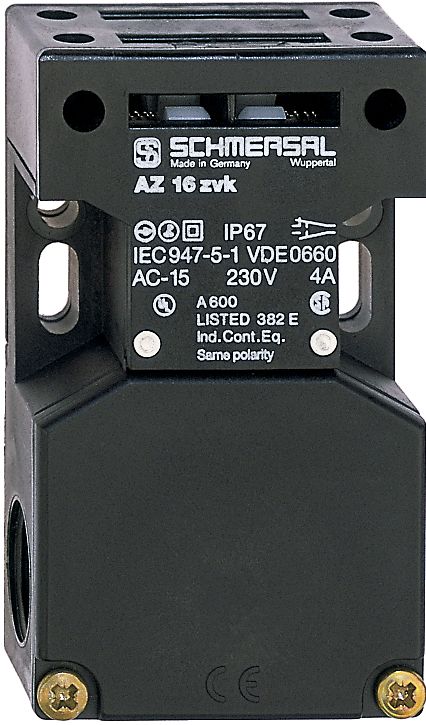

Schmersal AZ 16-03ZVRK-M20 safety switch with separate actuator 101157374

The AZ 16-03ZVRK-M20 safety interlock switch is an electromechanical switch providing high safety for monitoring protective devices. With three safety contacts and IP67 protection, it is suitable for demanding applications. The robust construction of glass-fiber-reinforced thermoplastic ensures long service life and high reliability. Its three cable entries and screw terminal connections allow for flexible integration into various installations.

Technical Data:

Product Designation:

• AZ 16-03ZVRK-M20

Article Number:

• 101157374

EAN:

• 4030661180045

eCl@ss Numbers:

• Version 12.0: 27-27-26-02
• Version 11.0: 27-27-26-02
• Version 9.0: 27-27-26-02

ETIM Numbers:

• Version 7.0: EC002592
• Version 6.0: EC002592

Approvals - Regulations:

• Certificates: cULus, CCC
• Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1

General Data:

• Coding Level per EN ISO 14119: Low
• Operating Principle: Electromechanical
• Housing Material: Glass-fiber-reinforced thermoplastic, self-extinguishing
• Gross Weight: 115 g

Features:

• Number of Actuation Directions: 3
• Number of Safety Contacts: 3
• Number of Cable Entries: 3

Safety Considerations:

• Performance Level: Up to PL c
• Category: 1
• B10D NC Contacts: 2,000,000 cycles
• B10D NO Contacts: 1,000,000 cycles
• Service Life: 20 years

Mechanical Data:

• Mechanical Durability: At least 1,000,000 cycles
• Latching Force: 30 N
• Forced Opening Distance: 8 mm
• Forced Opening Force per NC Contact: At least 10 N
• Forced Opening Force: At least 30 N
• Actuation Speed: Maximum 2 m/s
• Mounting: Screws (2x M6)

Dimensions:

• Length: 30 mm
• Width: 52 mm
• Height: 90 mm

Connection Technology:

• Cable Entry: 3 x M20 x 1.5
• Connection Type: Screw terminals
• Conductor Cross-Section: 0.25–2.5 mm²

Environmental Conditions:

• Protection Class: IP67
• Ambient Temperature: -30 to +80 °C
• Storage and Transport Temperature: -40 to +85 °C

Electrical Data:

• Thermal Continuous Current: 10 A
• Conditional Rated Short-Circuit Current: 1,000 A
• Switching Element: 3 NC
• Switching Principle: Slow-action contacts with positive break
• Maximum Switching Frequency: 4,000 /h

Electrical Data - Safety Contacts:

• Voltage AC-15: 230 VAC, Current: 4 A
• Voltage DC-13: 24 VDC, Current: 4 A

Electrical Data - Auxiliary Contacts:

Voltage AC-15: 230 VAC, Current: 4 A

Voltage DC-13: 24 VDC, Current: 4 A

Included in Delivery:

Slot covers for dust-tight sealing of unused openings

Type: AZ 16-03ZVRK-M20
