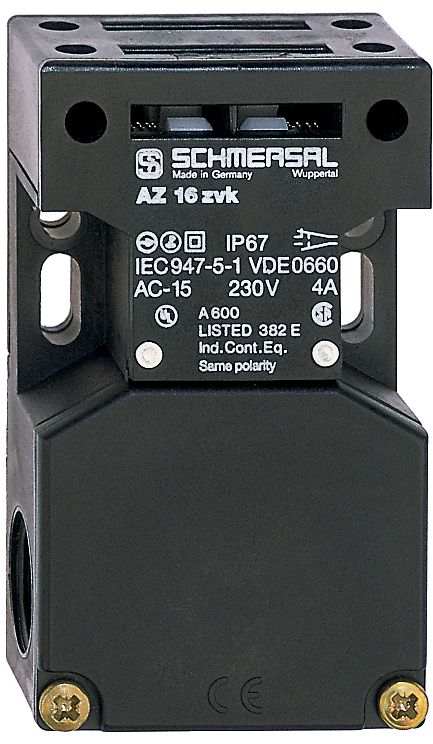

Schmersal AZ 16-03ZVK safety switch with separate actuator 101155113

The AZ 16-03ZVK-M16 safety switch provides reliable monitoring of safety devices. Its robust housing made of glass-fiber-reinforced thermoplastic is ideal for demanding environments. With three safety contacts, high service life, and reset force, it is perfectly suited for industrial applications.

Technical Data:

Product Designation:

• AZ 16-03ZVK-M16

Article Number:

• 101155113

EAN:

• 4030661175317

eCl@ss Numbers:

• Version 12.0: 27-27-26-02
• Version 11.0: 27-27-26-02
• Version 9.0: 27-27-26-02

ETIM Numbers:

• Version 7.0: EC002592
• Version 6.0: EC002592

Approvals - Standards:

• Certificates: cULus, CCC

General Data:

• Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
• Coding Level per EN ISO 14119: Low
• Operating Principle: Electromechanical
• Housing Material: Glass-fiber-reinforced thermoplastic
• Gross Weight: 120 g

Features:

• Reset Force: Yes
• Number of Approach Directions: 3
• Number of Safety Contacts: 3
• Number of Cable Entries: 3

Safety Considerations:

• Standards: EN ISO 13849-1
• Performance Level: Up to c
• Category: 1
• B10D NC Contacts: 2,000,000 cycles
Note: Electrical service life available upon request.

• B10D NO Contacts: 1,000,000 cycles
Note: At 10% Ie and resistive load

• Service Life: 20 years

Exclusion of Errors:

• Allowed if sufficient tamper protection and appropriate logic unit are used (in 2-channel operation)
• Performance Level: Up to d
• Category: 3

Mechanical Data:

• Mechanical Service Life: Minimum 1,000,000 cycles
• Positive Opening Travel: 8 mm
• Positive Opening Force per NC Contact: Minimum 10 N
• Minimum Actuation Force: 30 N
• Maximum Actuation Speed: 2 m/s
• Mounting: Screws (2x M6)

Connection Technology:

• Cable Entry: 3 x M16 x 1.5
• Connection Type: Screw Terminals
• Wire Cross Section: 0.25 - 2.5 mm² (incl. ferrules)
• Compatible Wire Types: Rigid single-strand, rigid multi-strand, flexible

Dimensions:

• Length: 30 mm
• Width: 52 mm
• Height: 90 mm

Environmental Conditions:

• Protection Class: IP67
• Operating Temperature: -30 to +80 °C
• Storage/Transport Temperature: -40 to +85 °C
• Max. Installation Altitude: 2,000 m

Insulation Ratings:

• Rated Insulation Voltage Ui: 500 V
• Rated Impulse Withstand Voltage Uimp: 6 kV
• Overvoltage Category: III
• Pollution Degree: 3

Electrical Data:

Thermal Continuous Current: 10 A

Conditional Short-Circuit Current: 1,000 A

Switching Element: 3 NC Contacts

Switching Principle: Slow-action switching, positive-opening NC contacts

Max. Switching Frequency: 4,000/h

Contact Material: Silver

Safety Contacts:

Voltage, AC-15: 230 VAC

Current, AC-15: 4 A

Voltage, DC-13: 24 VDC

Current, DC-13: 4 A

Auxiliary Contacts:

Voltage, AC-15: 230 VAC

Current, AC-15: 4 A

Voltage, DC-13: 24 VDC

Current, DC-13: 4 A

Included in Delivery:

Cover plugs for unused cable entries to ensure dustproof sealing

Type: AZ 16-03ZVK
