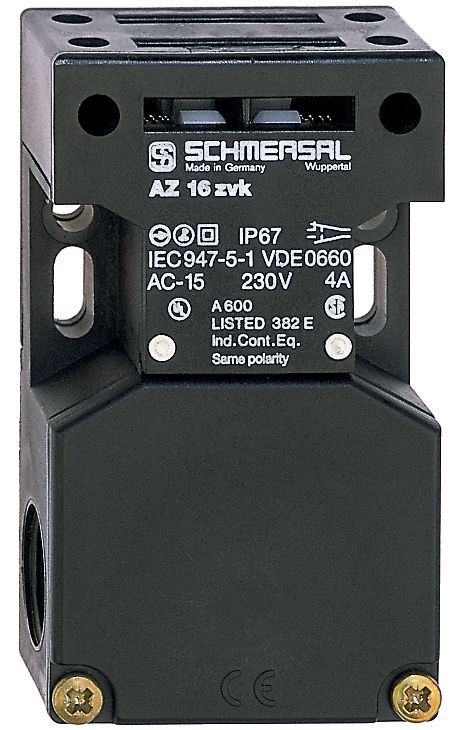

Schmersal AZ 16-03ZVRK safety switch with separate actuator 101154220

The AZ 16-03ZVRK-M16 electromechanical safety switch is designed for safety-critical applications. With three safety contacts (NC), it ensures high tamper protection and complies with EN ISO 13849-1 requirements. The robust housing, made of glass fiber-reinforced plastic, is self-extinguishing and offers an IP67 protection rating, making it ideal for demanding environments. Three cable entries and flexible connection options simplify installation and enhance adaptability. The AZ 16-03ZVRK-M16 is built for a lifespan of at least 1,000,000 operations, making it suitable for various industrial applications.

Technical Data:

Product Designation:

• AZ 16-03ZVRK-M16

Article Number:

• 101154220

EAN:

• 4030661171579

Certifications and Standards:

• cULus, CCC
• EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1

Coding Level:

• Low according to EN ISO 14119

Operating Principle:

• Electromechanical

Materials:

• Housing: Plastic, glass fiber-reinforced thermoplastic, self-extinguishing

Gross Weight:

• 115 g

Features:

• Number of Approach Directions: 3
• Number of Safety Contacts: 3
• Number of Cable Entries: 3

Safety Considerations:

• Performance Level: Up to PL c
• Category: 1 (up to 3 with dual-channel use and suitable logic unit)
• B10D NC: 2,000,000 cycles
• Service Life: 20 years

Mechanical Data:

• Mechanical Lifespan: Min. 1,000,000 cycles
• Latching Force: 30 N
• Positive Opening Distance: 8 mm
• Positive Opening Force per NC: Min. 10 N
• Total Positive Opening Force: Min. 30 N
• Actuation Speed: Max. 2 m/s
• Mounting: Screws (2x M6)

Connection Technology:

• Cable Entry: 3 x M16 x 1.5
• Connection Type: Screw terminals
• Wire Cross-section:
- Minimum: 0.25 mm²
- Maximum: 2.5 mm²


Dimensions:

• Length: 30 mm
• Width: 52 mm
• Height: 90 mm

Environmental Conditions:

• Protection Rating: IP67
• Ambient Temperature: -30 °C to +80 °C
• Storage and Transport Temperature: -40 °C to +85 °C

Insulation Ratings:

• Rated Insulation Voltage: 500 V
• Rated Impulse Withstand Voltage: 6 kV
• Overvoltage Category: III
• Pollution Degree: 3

Electrical Data:

• Thermal Continuous Current: 10 A
• Rated Short-circuit Current: 1,000 A
• Switching Element: 3 NC
• Switching Principle: Slow-action, positive-opening NC
• Maximum Switching Frequency: 4,000 /h

Electrical Data - Safety Contacts:

Voltage (AC-15): 230 VAC, Current: 4 A

Voltage (DC-13): 24 VDC, Current: 4 A

Scope of Delivery:

Slot seals for dust-tight covering of unused openings

Type: AZ16-03ZVRK
