Schmersal SE-100 C monitoring of safety edge 101153919
|
136,44 EUR |
|||||||||||
|
( 162,36 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1312622 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101153919 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101153919:
Product Description in English:

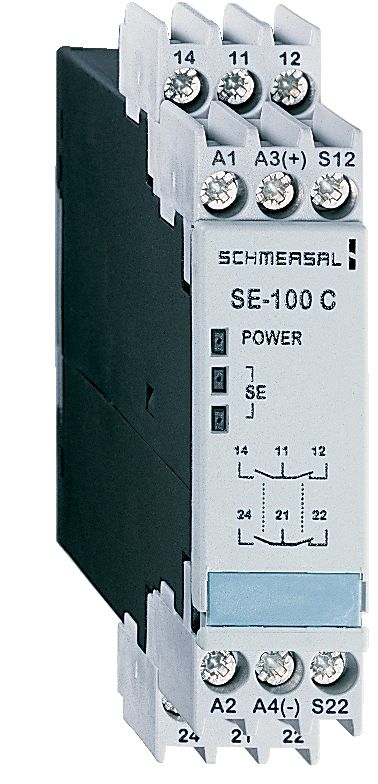

The SE-100 C Evaluation Unit is designed specifically for safety edge systems, offering reliable monitoring and control. Made from high-quality thermoplastic, it includes advanced safety features such as wire break detection, cross-short detection, and an automatic reset function. With robust construction and long service life, it is well-suited for industrial applications.
Technical Data:
Product Type Designation:
- SE-100 C Evaluation Unit
Order Number:
- 101153919
EAN:
- 4030661289168
Certifications and Classifications:
- eCl@ss Number, Version 12.0: 27-37-18-19
- eCl@ss Number, Version 11.0: 27-37-18-19
- eCl@ss Number, Version 9.0: 27-37-18-19
- ETIM Number, Version 7.0: EC001449
- ETIM Number, Version 6.0: EC001449
Material Information:
- Housing Material: Plastic, Thermoplastic
Mechanical Data:
- Mechanical Lifespan: 20,000,000 operations
- Mounting: Quick-mounting on DIN EN 60715 standard rail
Electrical Data:
- Operating Voltage: 24 VDC (-10 % to +20 %)
- Nominal Operating Current: 150 mA
- Max. Power Consumption: 4 W
- Safety Contacts: 1
- Auxiliary Contacts: 1
- Switching Current at DC-13 (24 VDC): 2 A
- Switching Voltage at AC-15 (230 VAC): 2 A
Environmental Conditions:
- Housing Protection Class: IP40
- Installation Space Protection Class: IP40
- Terminal Protection Class: IP40
- Operating Temperature: +5 °C to +55 °C
Features:
- Electronic Fuse
- Wire Break and Cross-Short Detection
- Automatic Reset Function
- Integrated Status Indicator (2 LEDs)
Dimensions:
- Width: 22.5 mm
- Height: 100 mm
- Depth: 121 mm
Notes:
- Designed exclusively for use with safety edge systems
- Manual reset must comply with EN 1760-2 requirements
- Overall machine safety depends on proper installation
Type: SE-100 C
Questions & answers
What is the delivery time of Schmersal SE-100 C monitoring of safety edge 101153919?
The article Schmersal SE-100 C monitoring of safety edge 101153919 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101153919 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal SE-100 C monitoring of safety edge 101153919 always at the best possible price. We can give you a discount of 2% on Schmersal SE-100 C monitoring of safety edge 101153919 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Schmersal SE-100 C monitoring of safety edge 101153919 we can offer you a price of 134,39 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
