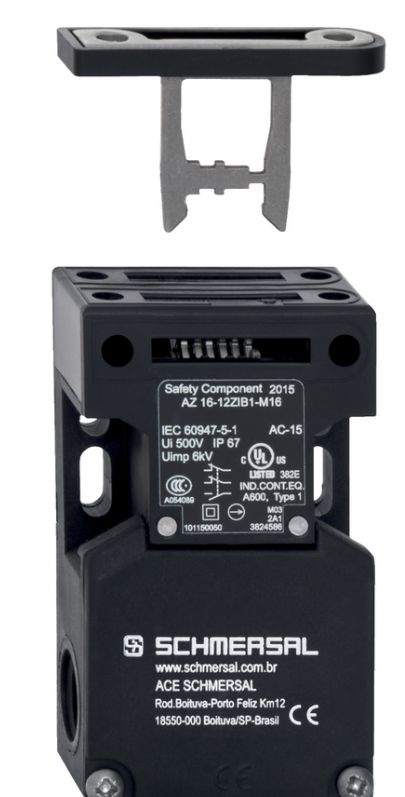

Schmersal AZ 16-12ZIB1-1747 safety switch with separate actuator 101150051

Order Details:

• Product Type Designation: AZ 16-12ZIB1-M16-1747
• Article Number (Order Number): 101150051
• EAN (European Article Number): 4030661154459
• eCl@ss Number, Version 12.0: 27-27-26-02
• eCl@ss Number, Version 11.0: 27-27-26-02
• eCl@ss Number, Version 9.0: 27-27-26-02
• ETIM Number, Version 7.0: EC002592
• ETIM Number, Version 6.0: EC002592

Approvals - Standards:

• Certificates: cULus
• Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1

General Data:

• Coding level according to EN ISO 14119: high
• Operating principle: electromechanical
• Housing material: Plastic, glass fiber-reinforced thermoplastic, self-extinguishing
• Actuator material: Stainless steel
• Gross weight: 176 g

General Data - Features:

• Reset force: Yes
• Number of auxiliary contacts: 1
• Number of safety contacts: 2
• Number of cable entries: 3

Safety Considerations:

• Performance Level: up to c
• Category: 1
• B10D NC contact: 2,000,000 operations
• B10D NO contact: 1,000,000 operations
- Note: at 10% Ie and resistive load

• Service life: 20 years
• Performance Level for dual-channel use: up to d
• Category: 3

Mechanical Data:

• Minimum actuation radius: 250 mm
• Actuator: straight, rigid
• Minimum mechanical service life: 1,000,000 operations
• Retention force: 30 N
• Forced opening travel: 8 mm
• Minimum forced opening force per NC contact: 10 N
• Minimum forced opening force: 20 N
• Maximum actuation speed: 2 m/s
• Mounting: Screws (2x M6)

Mechanical Data - Connection Technology:

• Cable entry: 3 x M16 x 1.5
• Connection type: Screw terminals
• Connection cross-section: 0.75 - 2.5 mm²
- Note: All specifications include ferrules

• Permissible type of cable: Rigid single-core, rigid multi-core, flexible

Mechanical Data - Dimensions:

• Sensor length: 30 mm
• Sensor width: 52 mm
• Sensor height: 90 mm

Environmental Conditions:

• Protection class: IP67
• Operating temperature: -30 ... +80 °C
• Storage and transport temperature: -40 ... +85 °C
• Maximum installation height above sea level: 2,000 m

Environmental Conditions - Insulation Properties:

• Rated insulation voltage Ui: 500 V
• Rated impulse withstand voltage Uimp: 6 kV
• Overvoltage category: III
• Pollution degree: 3

Electrical Data:

• Thermal continuous current: 10 A
• Conditional rated short-circuit current: 1,000 A
• Switching element: 1 NO, 2 NC
• Switching principle: Slow-action switch with forced opening NC
• Maximum switching frequency: 4,000 /h

Electrical Data - Safety Contacts:

• Voltage, utilization category AC-15: 230 VAC
• Current, utilization category AC-15: 4 A
• Voltage, utilization category DC-13: 24 VDC
• Current, utilization category DC-13: 4 A

Electrical Data - Auxiliary Contacts:

• Current, utilization category AC-15: 4 A
• Current, utilization category DC-13: 4 A

Scope of Delivery:

• Slot closures

Note:

• Hinge pivot point and top edge of the safety switch plus 5 mm must form one plane.
• Minimum actuation radius for movable protective devices: 250 mm.
• The actuator is not available separately.
