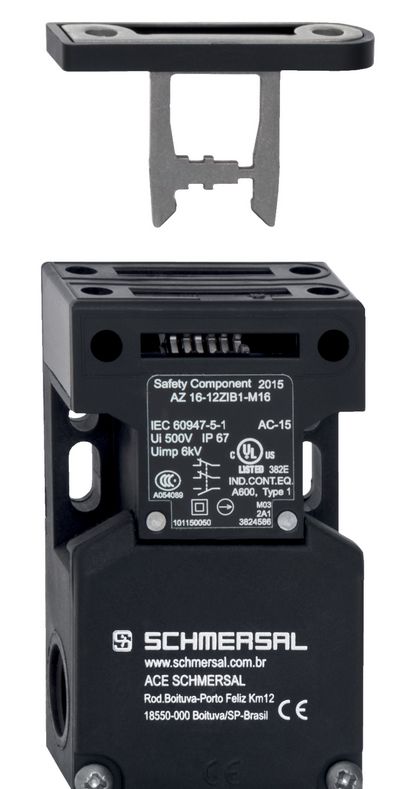

Schmersal AZ 16-12ZIB1 safety switch with separate actuator 101150050

The AZ 16-12ZIB1-M16 safety interlock switch is designed for use in safety applications involving sliding, removable, or rotating protective devices. The robust housing made of glass-fiber-reinforced thermoplastic ensures reliability and durability. With its high coding level per EN ISO 14119 and suitability for demanding environments down to -40 °C, this switch provides the highest level of safety and flexibility. It features two safety contacts, one auxiliary contact, and easy installation via screw terminals.

Technical Data:

Product Designation:

• AZ 16-12ZIB1-M16

Article Number:

• 101150050

EAN:

• 4030661154442

eCl@ss Numbers:

• Version 12.0: 27-27-26-02
• Version 11.0: 27-27-26-02
• Version 9.0: 27-27-26-02

ETIM Numbers:

• Version 7.0: EC002592
• Version 6.0: EC002592

Approvals - Regulations:

• Certificates: cULus
• Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1

General Data:

• Coding Level per EN ISO 14119: High
• Operating Principle: Electromechanical
• Housing Material: Glass-fiber-reinforced thermoplastic, self-extinguishing
• Actuator Material: Stainless Steel
• Gross Weight: 158 g

Features:

• Reset Force: Yes
• Number of Safety Contacts: 2
• Number of Auxiliary Contacts: 1
• Number of Cable Entries: 3

Safety Considerations:

• Performance Level: Up to PL c
• Category: 1
• B10D NC Contacts: 2,000,000 cycles
• B10D NO Contacts: 1,000,000 cycles
• Service Life: 20 years

Mechanical Data:

• Actuation Radius: At least 250 mm
• Actuator: Straight, rigid
• Mechanical Durability: 1,000,000 cycles
• Forced Opening Distance: 8 mm
• Forced Opening Force: At least 20 N
• Actuation Speed: Maximum 2 m/s
• Mounting: Screws (2x M6)

Dimensions:

• Length: 30 mm
• Width: 52 mm
• Height: 90 mm

Connection Technology:

• Cable Entry: 3 x M16 x 1.5
• Connection Type: Screw terminals
• Conductor Cross-Section: 0.75–2.5 mm²

Environmental Conditions:

• Protection Class: IP67
• Ambient Temperature: -30 to +80 °C
• Storage and Transport Temperature: -40 to +85 °C

Electrical Data:

• Thermal Continuous Current: 10 A
• Conditional Rated Short-Circuit Current: 1,000 A
• Switching Element: 1 NO, 2 NC
• Switching Principle: Slow-action contacts with positive break
• Maximum Switching Frequency: 4,000 /h

Electrical Data - Safety Contacts:

• Voltage AC-15: 230 VAC, Current: 4 A
• Voltage DC-13: 24 VDC, Current: 4 A

Electrical Data - Auxiliary Contacts:

Voltage AC-15: 230 VAC, Current: 4 A

Voltage DC-13: 24 VDC, Current: 4 A

Included in Delivery:

Slot covers

Notes:

The hinge pivot point and the top edge of the safety switch must form a level plane plus 5 mm.

Minimum actuation radius for rotating protective devices: 250 mm.

Actuator not available separately.

Type: AZ 16-12ZIB1
