Schmersal 101149214 MS-AZ 15/16 R/P mounting kit
|
45,85 EUR 47,84 EUR |
|
|
( 54,56 EUR incl. VAT ) ≈ £38.93 | ≈ $51.67 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1215993 |
|---|---|
| Mfg Part No: | 101149214 |
| Weight: | 0.123 kg |
| Type: | MONTAGESATZ MS AZ 15/16 R/P |
Product information for Schmersal 101149214:

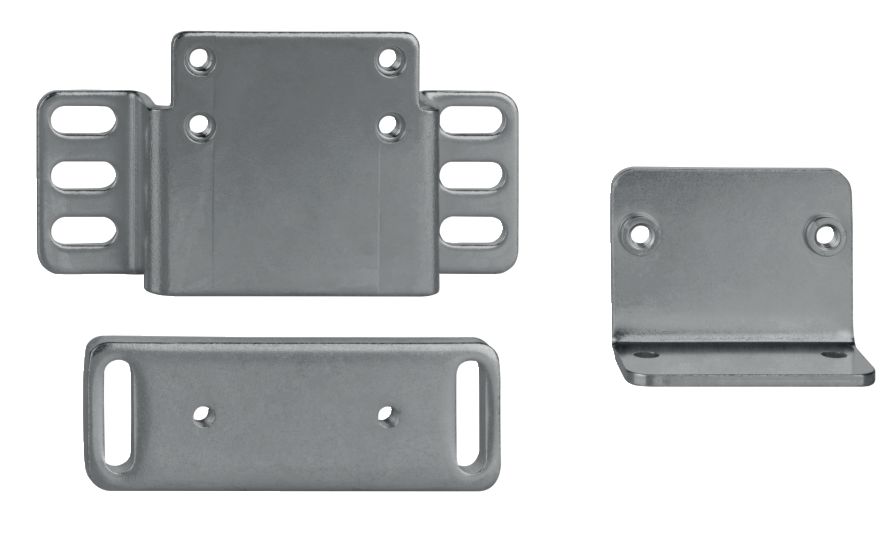

The kit consists of high-quality materials such as lens-head screws, a mounting plate, a U-profile, and a fastening bracket, specifically developed for use with the AZ 15/16-B6 actuator. This set allows for quick and easy assembly while ensuring a long-lasting and robust attachment.
Important Note: The AZ 15/16 R/P mounting set can only be used in combination with the AZ 15/16-B6 actuator.
Technical Data:
Product Type Designation:
AZ 15/16 R/P Mounting Set
Article Number (Order Number):
101149214
EAN (European Article Number):
4030661287584
eCl@ss Numbers:
Version 12.0: 27-27-26-92
Version 11.0: 27-27-26-92
Version 9.0: 27-27-26-92
ETIM Numbers:
Version 7.0: EC002594
Version 6.0: EC002594
General Data:
Gross Weight:
306 g
Mechanical Data:
Mounting Instruction:
Install at a right angle to the protective door
Included Mounting Materials:
Lens-head screw M5 x 16 according to ISO 7380
Lens-head screw M5 x 10 according to ISO 7380
Washer DIN 125-5.3
U-profile AZ 16
Fastening bracket AZ 16
Countersunk screw M5 x 16 DIN 7991
Mounting plate AZ 16/AZM 161
Note (General):
The mounting kits can only be used in combination with the AZ 15/16-B6 actuato
Questions & answers
What is the delivery time of Schmersal 101149214 MS-AZ 15/16 R/P mounting kit ?
The article Schmersal 101149214 MS-AZ 15/16 R/P mounting kit is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101149214 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal 101149214 MS-AZ 15/16 R/P mounting kit always at the best possible price. We can give you a discount of 2% on Schmersal 101149214 MS-AZ 15/16 R/P mounting kit if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
