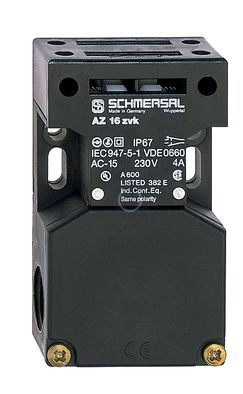

Schmersal AZ 16-02ZVRK safety switch with separate actuator 101147145

The AZ 16-02ZVRK-M16 safety switch is a versatile and reliable electromechanical switch designed for safety-critical applications. Featuring two safety contacts (NC) and a low coding level according to EN ISO 14119, it provides effective tamper protection and meets the highest safety standards. The robust housing made of glass fiber-reinforced thermoplastic and the IP67 protection rating ensure ist suitability for demanding industrial environments. With three cable entries and flexible connection options, the switch is easy to install and adapt.

Technical Data:

Product Designation:

• AZ 16-02ZVRK-M16

Article Number:

• 101147145

EAN:

• 4030661141671

Certifications and Standards:

• cULus, CCC
• EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1

Coding Level:

• Low according to EN ISO 14119

Operating Principle:

• Electromechanical

Materials:

• Housing: Plastic, glass fiber-reinforced thermoplastic, self-extinguishing

Gross Weight:

• 115 g

Features:

• Number of Approach Directions: 3
• Number of Safety Contacts: 2
• Number of Cable Entries: 3

Safety Considerations:

• Performance Level: Up to PL c
• Category: 1 (up to 3 with dual-channel use and suitable logic unit)
• B10D NC: 2,000,000 cycles
• Service Life: 20 years

Mechanical Data:

• Mechanical Lifespan: Min. 1,000,000 cycles
• Latching Force: 30 N
• Positive Opening Distance: 8 mm
• Positive Opening Force per NC: Min. 10 N
• Total Positive Opening Force: Min. 20 N
• Actuation Speed: Max. 2 m/s
• Mounting: Screws (2x M6)

Connection Technology:

• Cable Entry: 3 x M16 x 1.5
• Connection Type: Screw terminals
• Conductor Cross-section:
- Minimum: 0.25 mm²
- Maximum: 2.5 mm²

• Approved Cable Types: Rigid single-strand, rigid multi-strand, flexible

Dimensions:

• Length: 30 mm
• Width: 52 mm
• Height: 90 mm

Environmental Conditions:

• Protection Rating: IP67
• Ambient Temperature: -30 °C to +80 °C
• Storage and Transport Temperature: -40 °C to +85 °C

Insulation Ratings:

• Rated Insulation Voltage: 500 V
• Rated Impulse Withstand Voltage: 6 kV
• Overvoltage Category: III
• Pollution Degree: 3

Electrical Data:

Thermal Continuous Current: 10 A

Rated Short-circuit Current: 1,000 A

Switching Element: 2 NC

Switching Principle: Slow-action, positive-opening NC

Maximum Switching Frequency: 4,000 /h

Electrical Data - Safety Contacts:

Voltage (AC-15): 230 VAC, Current: 4 A

Voltage (DC-13): 24 VDC, Current: 4 A

Scope of Delivery:

Slot seals for dust-tight covering of unused openings

Type: AZ 16-02ZVRK
