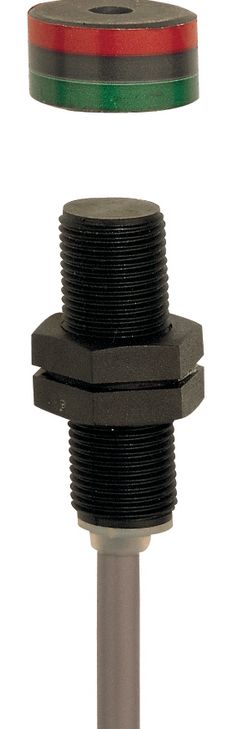

Schmersal BNS 120-02Z safety sensor 101144422
|
41,04 EUR |
|||||||||||
|
( 48,84 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1215996 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101144422 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101144422:
Product description in English:
The magnetic safety sensor BNS 120-02Z is a reliable solution for monitoring protective devices in safety-critical applications. With its robust housing made of fiberglass-reinforced thermoplastic and IP67 protection class, it is ideal for demanding environments.
The sensor operates on a magnetic principle and can be installed flush with the surface. It features two normally closed (NC) contacts and a lifespan of up to 25,000,000 switching cycles (B10D). The connection cable is 1 meter long and has a PVC sheath. The secured switching distances range up to 20 mm for ON (Sao) and up to 32 mm for OFF (Sar), depending on the actuator used.
The sensor complies with EN ISO 13849-1 and has a service life of 20 years.
Technical specifications:
Ordering information:
- Product designation: BNS 120-02Z
- Article number: 101144422
- EAN: 4030661133461
- eCl@ss number: 27-27-44-01
- ETIM number: EC002544
Approvals and standards:
- Certifications: cULus
- Standards: BG-GS-ET-14, EN IEC 60947-5-3
Mechanical specifications:
- Operating principle: Magnetic
- Dimensions: ISO thread M12, Length 38.5 mm
- Protection class: IP67
- Movement direction: Frontal to the active surface
- Switching distances: - Sao: 10 mm / 20 mm
- Lifespan: 25,000,000 switching cycles (B10D)
- Connection: Cable, 1 m length, PVC sheath, cross-section 0.25 mm² (23 AWG)
- Sar: 22 mm / 32 mm
Electrical specifications:
- Switching voltage: max. 100 VAC / 100 VDC
- Switching current: max. 0.25 A
- Switching power: max. 3 W
- Switching elements: 2 normally closed (NC)
- Switching frequency: max. 5 Hz
Environmental conditions:
- Operating temperature: -25 °C to +70 °C
- Vibration resistance: 10–55 Hz, amplitude 1 mm
- Shock resistance: 30 g / 11 ms
Delivery:
- The actuator is not included in the scope of delivery.
Accessories:
- Recommended actuators: BP 6, BP 8, BP 10, BP 15 SS
- Recommended safety control units: SRB-E-301ST, SRB-E-201LC
Notes:
- The sensor must be installed concealed according to EN ISO 14119, preventing actuation with a magnet.
- Contact symbols are shown with the protective device in a closed state.
Type: BNS 120-02Z
Questions & answers
What is the delivery time of Schmersal BNS 120-02Z safety sensor 101144422?
The article Schmersal BNS 120-02Z safety sensor 101144422 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101144422 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal BNS 120-02Z safety sensor 101144422 always at the best possible price. We can give you a discount of 2% on Schmersal BNS 120-02Z safety sensor 101144422 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Schmersal BNS 120-02Z safety sensor 101144422 we can offer you a price of 40,42 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
