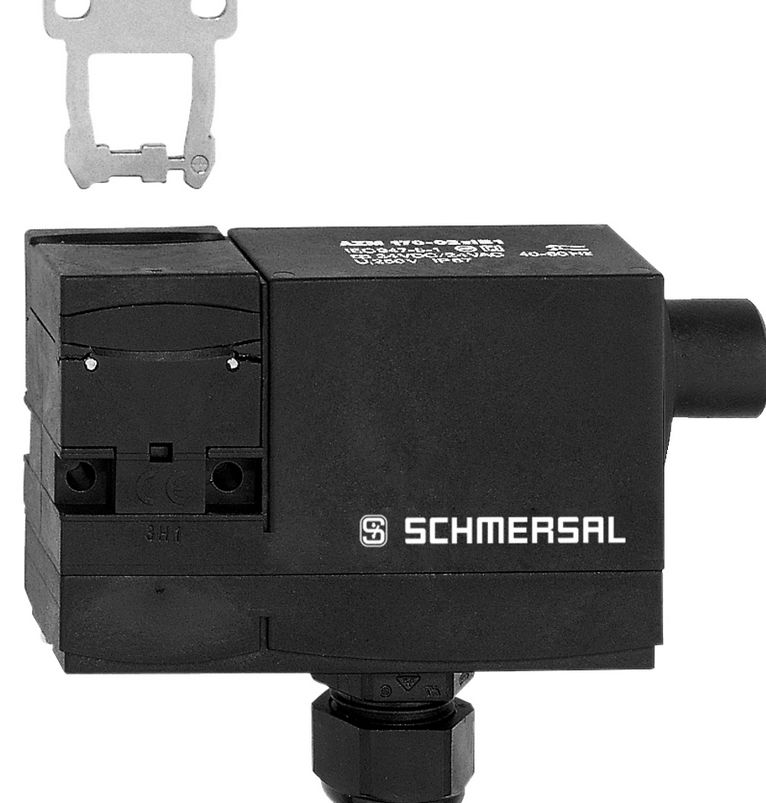

Schmersal AZM 170-02ZRI B1-2197 24VAC/DC safety locking device 101144275

The AZM 170-02ZRI-B1-2197 24VAC/DC safety switch with individual coding ensures high manipulation protection and optimal safety for movable protective devices. Featuring a robust glass-fiber-reinforced thermoplastic housing and stainless steel actuator, it is suitable for demanding industrial applications. It offers high retention force and easy installation with cutting terminal technology.

Technical Data:

Product Designation:

• AZM 170-02ZRI-B1-2197 24VAC/DC

Article Number:

• 101144275

EAN:

• 4030661132235

eCl@ss Numbers:

• Version 12.0: 27-27-26-03
• Version 11.0: 27-27-26-03
• Version 9.0: 27-27-26-03

ETIM Numbers:

• Version 7.0: EC002593
• Version 6.0: EC002593

Approvals - Standards:

• Certificates: IFA, cULus, CCC
• Standards: BG-GS-ET-19, EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1

General Data:

• Coding: Individual coding
• Coding Level (EN ISO 14119): High
• Operating Principle: Electromechanical
• Housing Material: Plastic, glass-fiber-reinforced thermoplastic, self-extinguishing
• Actuator Material: Stainless steel
• Gross Weight: 295 g

Features:

• Closed-circuit principle: Yes
• Auxiliary release: Yes
• Number of Approach Directions: 2
• Number of Safety Contacts: 2

Safety Consideration:

• Performance Level: Up to c
• Category: 1
• B10D NC Contacts: 2,000,000 cycles
• Service Life: 20 years

Mechanical Data:

• Minimum Actuation Radius: 140 mm
• Mechanical Lifetime: Minimum 1,000,000 cycles
• Retention Force FZh (EN ISO 14119): 1,000 N
• Maximum Retention Force Fmax: 1,300 N
• Latching Force: 30 N
• Positive Opening Distance: 11 mm
• Positive Opening Force per NC Contact: Minimum 8.5 N
• Maximum Operating Speed: 2 m/s
• Mounting: Screws (2x M5)

Mechanical Data - Connection Technology:

• Cable Entry: 1 x M20 x 1.5
• Connection Type: Cutting terminal technology
• Conductor Cross-Section: 0.75 mm² to 1 mm²
• Permissible Cable Types: Flexible

Mechanical Data - Dimensions:

• Sensor Length: 30 mm
• Sensor Width: 90 mm
• Sensor Height: 84 mm

Environmental Conditions:

• Protection Class: IP67
• Operating Temperature: -25 °C to +60 °C
• Storage and Transport Temperature: -25 °C to +85 °C
• Relative Humidity: Non-condensing, non-freezing
• Protection Class: II

Electrical Data:

• Thermal Continuous Current: 6 A
• Rated Control Supply Voltage: 24 VAC/DC
• Conditional Rated Short-Circuit Current: 1,000 A
• Electrical Power Consumption: Maximum 12 W
• Switching Element: 2 NC
• Switching Principle: Slow-action, positive-opening contacts
• Maximum Switching Frequency: 1,000 /h

Electrical Data - Magnet Actuation:

• Magnet Duty Cycle: 100 %
• Maximum Test Pulse Duration: 5 ms
• Minimum Test Pulse Interval: 50 ms

Electrical Data - Safety Contacts:

Voltage, Utilization Category AC-15: 230 VAC

Current, Utilization Category AC-15: 4 A

Voltage, Utilization Category DC-13: 24 VDC

Current, Utilization Category DC-13: 4 A

Included in Delivery:

Actuator included

Slot covers

Notes:

Cutting terminal technology for easy installation without ferrules.

Auxiliary release: Right, bottom, with M5 triangular key (available as accessory) or M3 key (included).

Type: AZM 170-02ZRI-B1-2197 24VAC/DC
