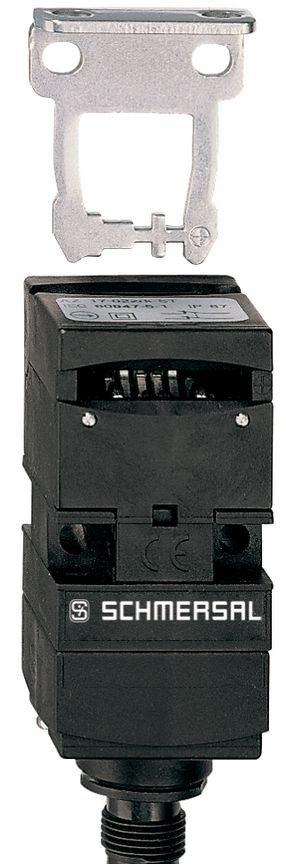

Schmersal AZ 17-02ZI-ST B5 safety switch with separate actuator 101144083

The AZ 17-02ZI-ST B5 safety switch with high coding level according to EN ISO 14119 ensures reliable protection for movable guard devices. Featuring a glass-fiber-reinforced thermoplastic housing and a stainless steel actuator, it offers a long service life of at least 1 million switching cycles. Rated IP67, this switch is suitable for demanding industrial applications.

Technical Data:

Product Designation:

• AZ 17-02ZI-ST B5

Article Number:

• 101144083

EAN:

• 4030661130828

eCl@ss Numbers:

• Version 12.0: 27-27-26-02
• Version 11.0: 27-27-26-02
• Version 9.0: 27-27-26-02

ETIM Numbers:

• Version 7.0: EC002592
• Version 6.0: EC002592

Approvals - Standards:

• Certificates: IFA, cULus
• Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1

General Data:

• Coding Level (EN ISO 14119): High
• Operating Principle: Electromechanical
• Housing Material: Plastic, glass-fiber-reinforced thermoplastic, self-extinguishing
• Actuator Material: Stainless steel
• Gross Weight: 90 g

Features:

• Number of Approach Directions: 2
• Number of Safety Contacts: 2

Safety Consideration:

• Performance Level: Up to c
• Category: 1
• B10D NC Contacts: 2,000,000 cycles
• Service Life: 20 years

Mechanical Data:

• Mechanical Lifetime: Minimum 1,000,000 cycles
• Latching Force: 5 N
• Positive Opening Distance: 11 mm
• Positive Opening Force per NC Contact: Minimum 17 N
• Operating Speed (max.): 2 m/s
• Mounting: Screws (2x M5)

Mechanical Data - Connection Technology:

• Connection Type: M12 connector, 4-pin, A-coded

Mechanical Data - Dimensions:

• Sensor Length: 30 mm
• Sensor Width: 30 mm
• Sensor Height: 85 mm

Environmental Conditions:

• Protection Class: IP67
• Operating Temperature: -30 °C to +80 °C
• Storage and Transport Temperature: -30 °C to +85 °C

Electrical Data:

• Thermal Continuous Current: 10 A
• Conditional Rated Short-Circuit Current: 1,000 A
• Switching Element: 2 NC
• Switching Principle: Slow-action, positive-opening contacts
• Maximum Switching Frequency: 2,000 /h
• Contact Material: Silver

Electrical Data - Safety Contacts:

• Voltage, Utilization Category AC-15: 230 VAC
• Current, Utilization Category AC-15: 4 A
• Voltage, Utilization Category DC-13: 24 VDC
• Current, Utilization Category DC-13: 4 A

Included in Delivery:

Actuator cannot be reordered.

Slot covers for dust-tight sealing of unused openings

Notes:

Smallest Actuation Radius for Hinged Guards:

- Via narrow side: 140 mm
- Via wide side: 200 mm

Hinge pivot and top of safety switch must be aligned with an additional 13 mm.

The actuator is not individually available.

Type: AZ 17-02ZI-ST B5
