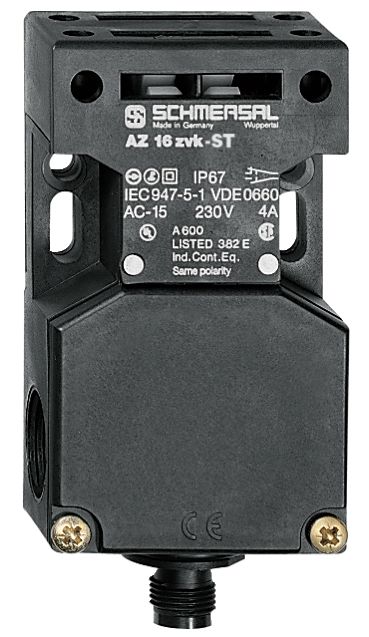

Schmersal 101143125 Safety switch AZ16-02ZVRK-ST, with separate actuator / Class 2
|
69,05 EUR |
|||||||||||
|
( 82,17 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 704577 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101143125 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101143125:
Technical Data:
Product Designation:- AZ 16-02ZVRK-ST
Article Number:
- 101143125
EAN:
- 4030661127224
Certifications and Standards:
- cULus, CCC
- EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
Coding Level:
- Low according to EN ISO 14119
Operating Principle:
- Electromechanical
Materials:
- Housing: Plastic, glass fiber-reinforced thermoplastic, self-extinguishing
Gross Weight:
- 120 g
Features:
- Number of Approach Directions: 3
- Number of Safety Contacts: 2
- Number of Cable Entries: 3
Safety Considerations:
- Performance Level: Up to PL c
- Category: 1 (up to 3 with dual-channel use and suitable logic unit)
- B10D NC: 2,000,000 cycles
- Service Life: 20 years
Mechanical Data:
- Mechanical Lifespan: Min. 1,000,000 cycles
- Latching Force: 30 N
- Positive Opening Distance: 8 mm
- Positive Opening Force per NC: Min. 10 N
- Total Positive Opening Force: Min. 20 N
- Actuation Speed: Max. 2 m/s
- Mounting: Screws (2x M6)
Connection Technology:
- Connector Position: Bottom
- Cable Entry: M12 (A-coded)
- Connection Type: Built-in M12 connector, 4-pin, A-coded
Dimensions:
- Length: 30 mm
- Width: 52 mm
- Height: 90 mm
Environmental Conditions:
- Protection Rating: IP67
- Ambient Temperature: -30 °C to +80 °C
- Storage and Transport Temperature: -40 °C to +85 °C
- Rated Impulse Withstand Voltage (4-pin connector): 2.5 kV
Insulation Ratings:
- Rated Insulation Voltage: 500 V
- Rated Impulse Withstand Voltage: 6 kV
- Overvoltage Category: III
- Pollution Degree: 3
Electrical Data:
Electrical Data - Safety Contacts:
Scope of Delivery:
Type: AZ16-02ZVRK-ST
Questions & answers
What is the delivery time of Schmersal 101143125 Safety switch AZ16-02ZVRK-ST, with separate actuator / Class 2?
The article Schmersal 101143125 Safety switch AZ16-02ZVRK-ST, with separate actuator / Class 2 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101143125 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal 101143125 Safety switch AZ16-02ZVRK-ST, with separate actuator / Class 2 always at the best possible price. We can give you a discount of 2% on Schmersal 101143125 Safety switch AZ16-02ZVRK-ST, with separate actuator / Class 2 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Schmersal 101143125 Safety switch AZ16-02ZVRK-ST, with separate actuator / Class 2 we can offer you a price of 68,01 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
