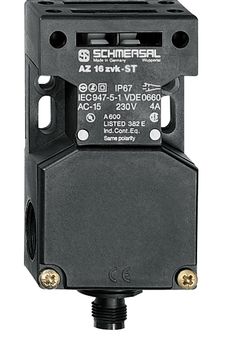

Schmersal 101143124 AZ 16 ZVRK-ST safety switch with separate actuator
|
-16% 57,43 EUR 68,02 EUR |
|
|
( 68,34 EUR incl. VAT ) ≈ £48.76 | ≈ $64.72 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1216056 |
|---|---|
| Mfg Part No: | 101143124 |
| UPC/EAN: | 4030661127217 |
| Weight: | 0.123 kg |
| Type: | AZ 16 ZVRK-ST |
Product information for Schmersal 101143124:
The AZ 16 ZVRK-ST safety switch with M12 (4-pin) connector ensures reliable electromechanical safety for protective devices such as sliding, removable, or hinged guards. Constructed from glass-fiber-reinforced thermoplastic and rated at IP67, this switch is suitable for demanding industrial environments. Its 30 N latching force and compatibility with three approach directions make it versatile for various applications.
Technical Data:
Product Designation:
- AZ 16 ZVRK-ST
Article Number:
- 101143124
EAN:
- 4030661127217
eCl@ss Numbers:
- Version 12.0: 27-27-26-02
- Version 11.0: 27-27-26-02
- Version 9.0: 27-27-26-02
ETIM Numbers:
- Version 7.0: EC002592
- Version 6.0: EC002592
Approvals - Standards:
- Certificates: cULus, CCC
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
General Data:
- Coding Level (EN ISO 14119): Low
- Operating Principle: Electromechanical
- Housing Material: Plastic, glass-fiber-reinforced thermoplastic, self-extinguishing
- Gross Weight: 125 g
Features:
- Number of Approach Directions: 3
- Number of Safety Contacts: 1
- Number of Auxiliary Contacts: 1
Safety Consideration:
- Performance Level: Up to c
- Category: 1
- B10D NC Contacts: 2,000,000 cycles
- B10D NO Contacts: 1,000,000 cycles
- Service Life: 20 years
Mechanical Data:
- Mechanical Lifetime: Minimum 1,000,000 cycles
- Latching Force: 30 N
- Positive Opening Distance: 8 mm
- Positive Opening Force per NC Contact: Minimum 10 N
- Positive Opening Force: Minimum 10 N
- Operating Speed (max.): 2 m/s
- Mounting: Screws (2x M6)
Mechanical Data - Connection Technology:
- Connector Position: Bottom
- Cable Entry: M12 (A-Coding)
- Connection Type: M12 connector, 4-pin, A-coded
Mechanical Data - Dimensions:
- Sensor Length: 30 mm
- Sensor Width: 52 mm
- Sensor Height: 90 mm
Environmental Conditions:
- Protection Class: IP67
- Operating Temperature: -30 °C to +80 °C
- Storage and Transport Temperature: -40 °C to +85 °C
Electrical Data:
- Thermal Continuous Current: 10 A
- Conditional Rated Short-Circuit Current: 1,000 A
- Switching Element: 1 NO, 1 NC
- Switching Principle: Slow-action, positive-opening contacts
- Maximum Switching Frequency: 4,000 /h
- Contact Material: Silver
Electrical Data - Safety Contacts:
- Voltage, Utilization Category AC-15: 230 VAC
- Current, Utilization Category AC-15: 4 A
- Voltage, Utilization Category DC-13: 24 VDC
- Current, Utilization Category DC-13: 4 A
Included in Delivery:
