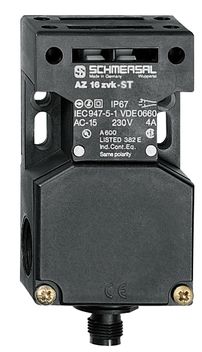

Schmersal AZ 16-02ZVK-ST safety switch with separate actuator 101143123

The AZ 16-02ZVK-ST electromechanical safety switch is designed for use on safety guards such as sliding, removable, or hinged doors. Its durable construction from glass-fiber-reinforced thermoplastic ensures long service life. Equipped with an M12 connector and reset force functionality, this switch provides reliable operation and flexibility in multiple approach directions.

Technical Data:

Product Designation:

• AZ 16-02ZVK-ST

Article Number:

• 101143123

EAN:

• 4030661127200

eCl@ss Numbers:

• Version 12.0: 27-27-26-02
• Version 11.0: 27-27-26-02
• Version 9.0: 27-27-26-02

ETIM Numbers:

• Version 7.0: EC002592
• Version 6.0: EC002592

Approvals - Standards:

• Certificates: cULus, CCC
• Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1

General Data:

• Coding Level (EN ISO 14119): Low
• Operating Principle: Electromechanical
• Housing Material: Plastic, glass-fiber-reinforced thermoplastic, self-extinguishing
• Gross Weight: 120 g

Features:

• Reset Force: Yes
• Number of Approach Directions: 3
• Number of Safety Contacts: 2

Safety Consideration:

• Performance Level: Up to c
• Category: 1
• B10D NC Contacts: 2,000,000 cycles
• B10D NO Contacts: 1,000,000 cycles
• Service Life: 20 years

Mechanical Data:

• Mechanical Lifetime: Minimum 1,000,000 cycles
• Positive Opening Distance: 8 mm
• Positive Opening Force per NC Contact: Minimum 10 N
• Positive Opening Force: Minimum 20 N
• Operating Speed (max.): 2 m/s
• Mounting: Screws (2x M6)

Mechanical Data - Connection Technology:

• Connector Position: Bottom
• Cable Entry: M12 (A-Coding)
• Connection Type: M12 connector, 4-pin, A-coded

Mechanical Data - Dimensions:

• Sensor Length: 30 mm
• Sensor Width: 52 mm
• Sensor Height: 90 mm

Environmental Conditions:

• Protection Class: IP67
• Operating Temperature: -30 °C to +80 °C
• Storage and Transport Temperature: -40 °C to +85 °C

Electrical Data:

• Thermal Continuous Current: 10 A
• Conditional Rated Short-Circuit Current: 1,000 A
• Switching Element: 2 NC
• Switching Principle: Slow-action, positive-opening contacts
• Maximum Switching Frequency: 4,000 /h
• Contact Material: Silver

Electrical Data - Safety Contacts:

• Voltage, Utilization Category AC-15: 230 VAC
• Current, Utilization Category AC-15: 4 A
• Voltage, Utilization Category DC-13: 24 VDC
• Current, Utilization Category DC-13: 4 A

Included in Delivery:

Slot covers for dust-tight sealing of unused openings

Type: AZ 16-02ZVK-ST
