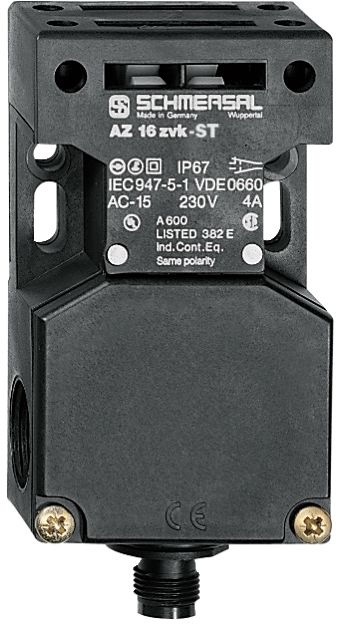

Schmersal AZ 16 ZVK-ST safety switch with separate actuator 101143122
|
70,98 EUR |
|||||||||||
|
( 84,47 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1216058 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101143122 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101143122:
Equipped with an M12 built-in connector (4-pin, A-coded) and an IP67 protection rating, the switch is suitable for harsh environments. The AZ 16 ZVK-ST features 1 NO and 1 NC contact and a maximum switching frequency of 4,000/h, making it a versatile component for industrial applications.
Technical Data:
Ordering Details:
- Product Type: AZ 16 ZVK-ST
- Part Number: 101143122
- EAN: 4030661127194
- eCl@ss Number: 27-27-26-02
- ETIM Number: EC002592
General Data:
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
- Coding Level: Low
- Operating Principle: Electromechanical
- Housing Material: Plastic, glass-fiber-reinforced thermoplastic, self-extinguishing
- Gross Weight: 120 g
Mechanical Data:
- Mechanical Lifespan: Min. 1,000,000 switching cycles
- Forced Opening Distance: 8 mm
- Connection Type: Built-in M12 connector, 4-pin, A-coded
- Dimensions (L x W x H): 30 mm x 52 mm x 90 mm
Electrical Data:
- Thermal Continuous Current: 10 A
- Switching Element: 1 NO, 1 NC
- Switching Principle: Slow-action switching, forced-opening contacts
- Rated Insulation Voltage Ui: 500 V
- Maximum Switching Frequency: 4,000/h
- Contact Material: Silver
Environmental Conditions:
- Protection Class: IP67
- Ambient Temperature: -30 °C to +80 °C
- Storage and Transport Temperature: -40 °C to +85 °C
- Protection Class: II
Included in Delivery:
- Slot covers for dustproof sealing of unused openings
Type: AZ 16 ZVK-ST
Questions & answers
What is the delivery time of Schmersal AZ 16 ZVK-ST safety switch with separate actuator 101143122?
The article Schmersal AZ 16 ZVK-ST safety switch with separate actuator 101143122 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101143122 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZ 16 ZVK-ST safety switch with separate actuator 101143122 always at the best possible price. We can give you a discount of 2% on Schmersal AZ 16 ZVK-ST safety switch with separate actuator 101143122 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Schmersal AZ 16 ZVK-ST safety switch with separate actuator 101143122 we can offer you a price of 69,92 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
