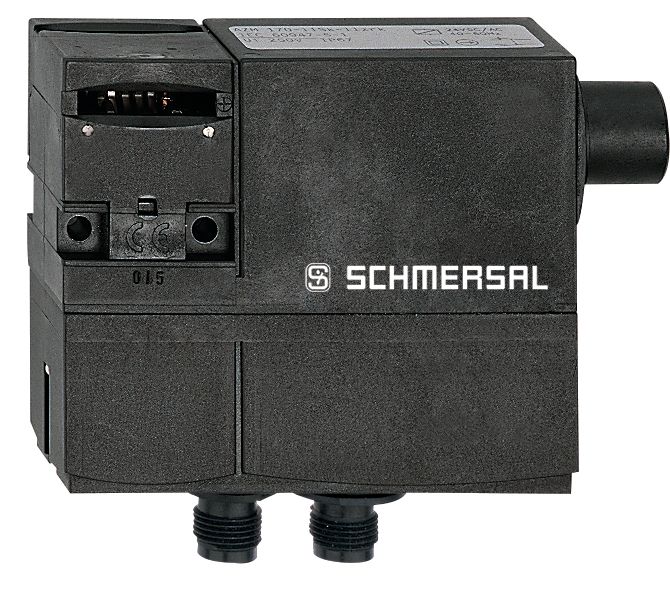

Schmersal AZM 170-02ZRK-ST-2197 24VAC/DC safety locking 101141430

The AZM 170-02ZRK-ST-2197 24VAC/DC safety switch is an electromechanical device designed for sliding, removable, or hinged safety guards. Equipped with a centrally positioned M12 connector and cutting clamp technology, it offers flexible and secure installation options. With a retention force of 1,000 N and robust construction, it ensures reliability in safety-critical applications.

Technical Data:

Product Designation:

• AZM 170-02ZRK-ST-2197 24VAC/DC

Article Number:

• 101141430

EAN:

• 4030661121963

eCl@ss Numbers:

• Version 12.0: 27-27-26-03
• Version 11.0: 27-27-26-03
• Version 9.0: 27-27-26-03

ETIM Numbers:

• Version 7.0: EC002593
• Version 6.0: EC002593

Approvals - Standards:

• Certificates: IFA, cULus, CCC
• Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1

General Data:

• Coding Level (EN ISO 14119): Low
• Operating Principle: Electromechanical
• Housing Material: Plastic, glass-fiber-reinforced thermoplastic, self-extinguishing
• Gross Weight: 285 g

Features:

• Closed-Circuit Principle: Yes
• Auxiliary Release: Yes
• Number of Approach Directions: 2
• Number of Safety Contacts: 2

Safety Consideration:

• Performance Level: Up to c
• Category: 1
• B10D NC Contacts: 2,000,000 cycles
• B10D NO Contacts: 1,000,000 cycles
• Service Life: 20 years

Mechanical Data:

• Mechanical Lifetime: Minimum 1,000,000 cycles
• Retention Force FZh (EN ISO 14119): 1,000 N
• Maximum Retention Force Fmax: 1,300 N
• Latching Force: 30 N
• Positive Opening Distance: 11 mm
• Operating Speed (max.): 2 m/s
• Mounting: Screws (2x M5)

Mechanical Data - Connection Technology:

• Connector Position: Centered
• Connection Type: M12 plug, 4-pin, A-coded; Cutting clamp technology
• Connection Cross-Section: 0.75 mm² - 1 mm² (flexible)

Mechanical Data - Dimensions:

• Sensor Length: 30 mm
• Sensor Width: 108 mm
• Sensor Height: 75.5 mm

Environmental Conditions:

• Protection Class: IP67
• Operating Temperature: -25 °C to +60 °C
• Storage and Transport Temperature: -25 °C to +85 °C

Electrical Data:

• Thermal Continuous Current: 4 A, 6 A
• Rated Control Supply Voltage: 24 VAC/DC
• Conditional Rated Short-Circuit Current: 1,000 A
• Electrical Power Consumption: Maximum 12 W
• Switching Element: 2 NC
• Switching Principle: Slow-action, positive-opening contacts

Electrical Data - Magnet Control:

• Magnet Duty Cycle: 100 %
• Test Pulse Duration: Maximum 5 ms
• Test Pulse Interval: Minimum 50 ms

Electrical Data - Safety Contacts:

Current, Utilization Category AC-15: 4 A

Voltage, Utilization Category DC-13: 24 VDC

Current, Utilization Category DC-13: 4 A

Other Data:

Applications: Sliding, removable, and hinged safety guards

Included in Delivery:

Actuator not included.

Slot cover for dust-tight sealing of unused openings.

Additional side auxiliary release (Triangle Key M3 included).

Type: AZM 170-02ZRK-ST-2197 24VAC/DC
