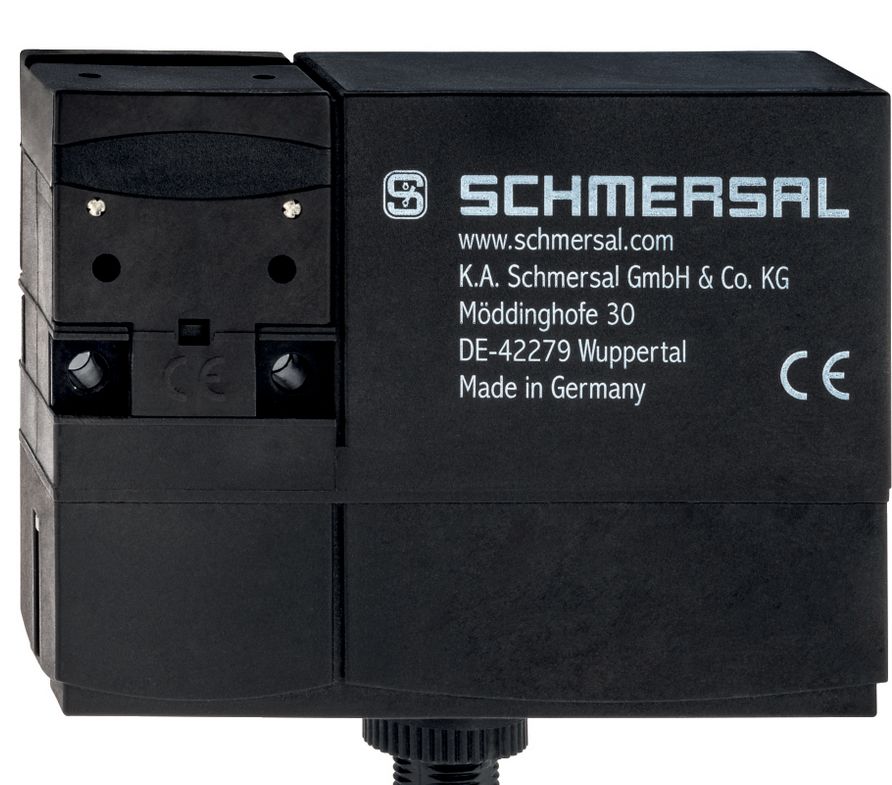

Schmersal AZM 170-02ZRKA-ST 24VAC/DC safety locking device 101141422
|
-16% 243,25 EUR 288,13 EUR |
|
|
( 289,47 EUR incl. VAT ) ≈ £206.76 | ≈ $273.17 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1216000 |
|---|---|
| Mfg Part No: | 101141422 |
| UPC/EAN: | 4030661121888 |
| Weight: | 0.123 kg |
| Type: | AZM 170-02ZRKA-ST 24VAC/DC |
Product information for Schmersal 101141422:
Ordering Details:
- Product Type: AZM 170-02ZRKA-ST 24VAC/DC
- Part Number: 101141422
- EAN: 4030661121888
- eCl@ss Number: 27-27-26-03
- ETIM Number: EC002593
General Data:
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
- Coding Level: Low
- Operating Principle: Electromechanical
- Housing Material: Plastic, glass-fiber-reinforced thermoplastic, self-extinguishing
- Gross Weight: 275 g
Mechanical Data:
- Mechanical Lifespan: Min. 1,000,000 switching cycles
- Locking Force: 1,000 N (max. 1,300 N)
- Latching Force: 30 N
- Connection Type: Cutting clamp technology, built-in M12 connector (4-pin)
- Dimensions (L x W x H): 30 mm x 90 mm x 75.5 mm
Electrical Data:
- Rated Control Supply Voltage: 24 VAC/DC
- Switching Element: 2 NC
- Switching Principle: Slow-action switching, forced-opening contacts
- Rated Insulation Voltage Ui: 250 VAC
- Maximum Switching Frequency: 1,000/h
- Contact Material: Silver
Environmental Conditions:
- Protection Class: IP67
- Ambient Temperature: -25 °C to +60 °C
- Protection Class: II
Included in Delivery:
- Slot cover
- Actuator not included
Notes:
- Cutting clamp technology allows for easy installation without ferrules.
- Auxiliary unlocking with triangular key M5 (optional accessory).
Questions & answers
What is the delivery time of Schmersal AZM 170-02ZRKA-ST 24VAC/DC safety locking device 101141422?
The article Schmersal AZM 170-02ZRKA-ST 24VAC/DC safety locking device 101141422 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101141422 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZM 170-02ZRKA-ST 24VAC/DC safety locking device 101141422 always at the best possible price. We can give you a discount of 2% on Schmersal AZM 170-02ZRKA-ST 24VAC/DC safety locking device 101141422 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
