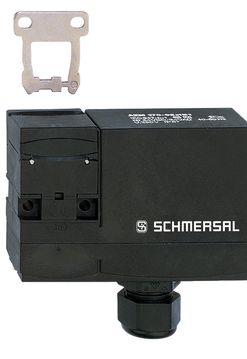

Schmersal AZM 170-11ZRI B5 24VAC/DC safety locking device 101140801
|
258,32 EUR |
|||||||||||
|
( 307,40 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1216013 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101140801 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101140801:
Technical Data:
Ordering Details:
- Product Type: AZM 170-11ZRI-B5 24VAC/DC
- Part Number: 101140801
- EAN: 4030661119892
- eCl@ss Number: 27-27-26-03
- ETIM Number: EC002593
General Data:
- Standards: BG-GS-ET-19, EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
- Coding: Individual Coding
- Coding Level: High
- Housing Material: Plastic, glass-fiber-reinforced thermoplastic
- Actuator Material: Stainless Steel
- Gross Weight: 295 g
Mechanical Data:
- Actuation Radius: Min. 140 mm
- Locking Force FZh: 1,000 N (max. 1,300 N)
- Latching Force: 30 N
- Forced Opening Distance: 11 mm
- Mechanical Lifespan: Min. 1,000,000 switching cycles
- Connection Type: Cutting Clamp Technology
- Dimensions (L x W x H): 30 mm x 90 mm x 84 mm
Electrical Data:
- Rated Control Supply Voltage: 24 VAC/DC
- Switching Element: 1 NO, 1 NC
- Switching Principle: Slow-action switching, forced-opening contacts
- Rated Insulation Voltage Ui: 250 VAC
- Electrical Power Consumption: Max. 12 W
- Maximum Switching Frequency: 1,000/h
Environmental Conditions:
- Protection Class: IP67
- Ambient Temperature: -25 °C to +60 °C
- Protection Class: II
Included in Delivery:
- Slot cover
- Actuator included (not reorderable).
Notes:
- Easy connection via cutting clamp technology, no ferrules required.
- Auxiliary unlocking for manual release with triangular key M5 (accessory).
Type: AZM 170-11ZRI-B5 24VAC/DC
Questions & answers
What is the delivery time of Schmersal AZM 170-11ZRI B5 24VAC/DC safety locking device 101140801?
The article Schmersal AZM 170-11ZRI B5 24VAC/DC safety locking device 101140801 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101140801 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZM 170-11ZRI B5 24VAC/DC safety locking device 101140801 always at the best possible price. We can give you a discount of 2% on Schmersal AZM 170-11ZRI B5 24VAC/DC safety locking device 101140801 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schmersal AZM 170-11ZRI B5 24VAC/DC safety locking device 101140801 we can offer you a price of 254,45 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
