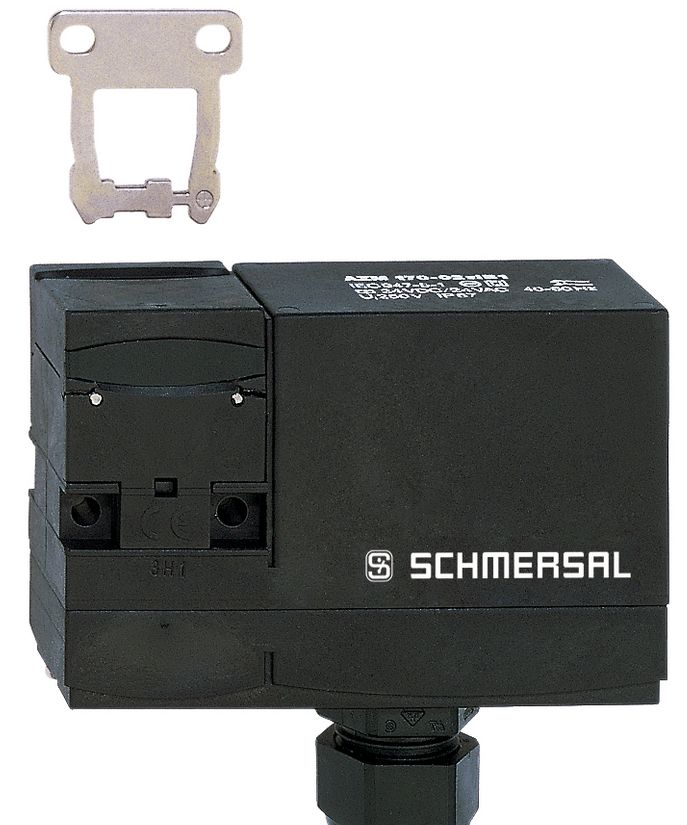

Schmersal AZM 170-11ZRI B1 24VAC/DC safety locking device 101140797
|
265,55 EUR |
|||||||||||
|
( 316,00 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1216017 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101140797 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101140797:
With integrated emergency unlocking and the ability to work flexibly without ferrules, the AZM 170 is the ideal choice for demanding safety solutions. Featuring a maximum locking force of 1,300 N and a long service life, this device is perfect for industrial safety applications such as sliding, removable, and rotating protective guards.
Technical Data:
Ordering Details:
- Product Type: AZM 170-11ZRI-B1 24VAC/DC
- Part Number: 101140797
- EAN: 4030661119854
- eCl@ss Number: 27-27-26-03
- ETIM Number: EC002593
General Data:
- Standards: BG-GS-ET-19, EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
- Coding: Individual coding
- Housing Material: Plastic, glass-fiber-reinforced thermoplastic
- Gross Weight: 288 g
Mechanical Data:
- Mechanical Lifespan: Min. 1,000,000 switching cycles
- Actuation Radius: Min. 140 mm
- Locking Force FZh: 1,000 N (max. 1,300 N)
- Forced Opening Path: 11 mm
- Connection Type: Cutting clamp technology
- Dimensions (L x W x H): 30 mm x 90 mm x 84 mm
Electrical Data:
- Rated Control Supply Voltage: 24 VAC/DC
- Switching Element: 1 NC, 1 NO
- Switching Principle: Slow-action switching, forced-opening contacts
- Rated Insulation Voltage Ui: 250 VAC
- Electrical Power Consumption: Max. 12 W
Environmental Conditions:
- Protection Class: IP67
- Ambient Temperature: -25 °C to +60 °C
- Protection Class: II
Included in Delivery:
- Slot cover
- Actuator included (not reorderable)
Accessories:
- Triangular key M5 for emergency unlocking
Notes:
- Cutting clamp technology allows for easy installation without ferrules
- Manual unlocking with triangular key (available as an accessory)
Type: AZM 170-11ZRI-B1 24VAC/DC
Questions & answers
What is the delivery time of Schmersal AZM 170-11ZRI B1 24VAC/DC safety locking device 101140797?
The article Schmersal AZM 170-11ZRI B1 24VAC/DC safety locking device 101140797 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101140797 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZM 170-11ZRI B1 24VAC/DC safety locking device 101140797 always at the best possible price. We can give you a discount of 2% on Schmersal AZM 170-11ZRI B1 24VAC/DC safety locking device 101140797 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schmersal AZM 170-11ZRI B1 24VAC/DC safety locking device 101140797 we can offer you a price of 261,57 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
