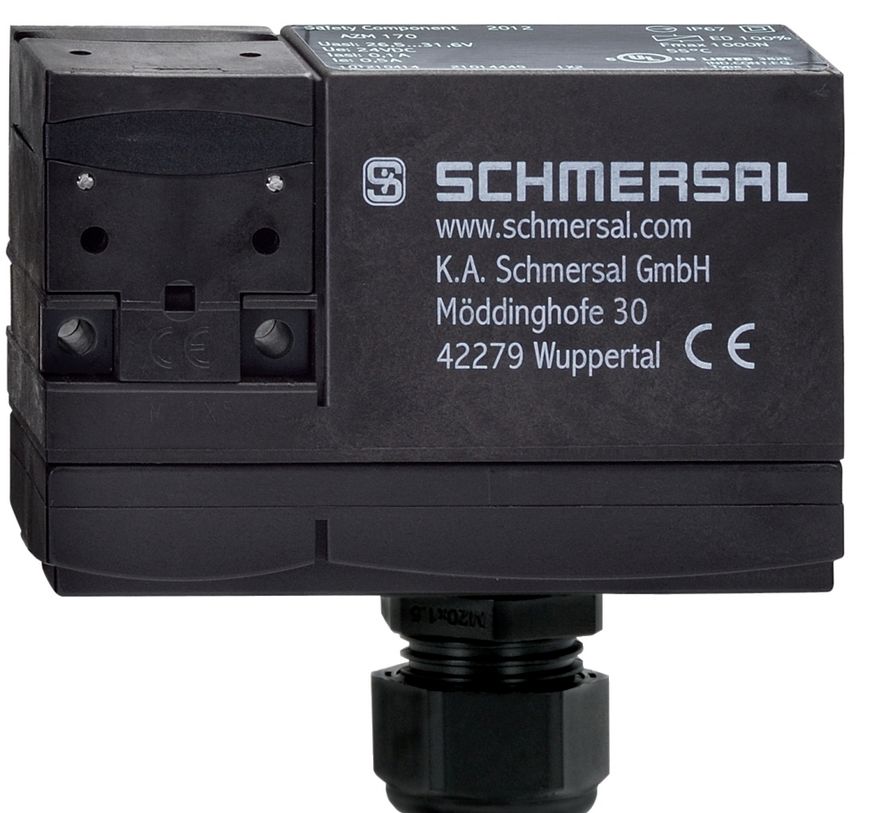

Schmersal AZM 170-11ZRKA 24VAC/DC safety locking device 101140796
|
243,47 EUR |
|||||||||||
|
( 289,73 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1216004 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101140796 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101140796:
Technical Data:
Ordering Details:
- Product Type: AZM 170-11ZRKA 24VAC/DC
- Part Number: 101140796
- EAN: 4030661119847
- eCl@ss Number: 27-27-26-03
- ETIM Number: EC002593
General Data:
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
- Operating Principle: Electromechanical
- Housing Material: Plastic, glass-fiber-reinforced thermoplastic, self-extinguishing
- Gross Weight: 278 g
Mechanical Data:
- Mechanical Lifespan: Min. 1,000,000 switching cycles
- Locking Force FZh: 1,000 N (max. 1,300 N)
- Forced Opening Path: 11 mm
- Actuation Speed: Max. 2 m/s
- Dimensions (L x W x H): 30 mm x 90 mm x 84 mm
- Connection Type: Cutting clamp technology
Electrical Data:
- Rated Control Supply Voltage: 24 VAC/DC
- Switching Element: 1 NC, 1 NO
- Switching Principle: Slow-action switching, forced-opening contacts
- Rated Insulation Voltage Ui: 250 VAC
- Electrical Power Consumption: Max. 12 W
Environmental Conditions:
- Protection Class: IP67
- Ambient Temperature: -25 °C to +60 °C
- Storage and Transport Temperature: -25 °C to +85 °C
- Protection Class: II
Included in Delivery:
- Slot cover
- Actuator not included
Accessories:
- Triangular key M5 for emergency unlocking
Notes:
- Cutting clamp technology allows for easy installation without ferrules
- Manual unlocking with triangular key (available as an accessory)
Type: AZM 170-11ZRKA 24VAC/DC
