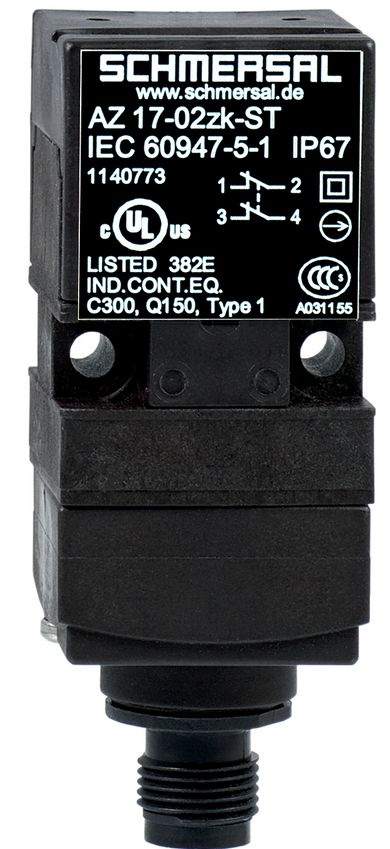

Schmersal AZ 17-02ZRK-ST safety switch with separate actuator 101140775

The AZ 17-02ZRK-ST is a robust electromechanical safety switch designed for securing protective devices in industrial environments. Featuring increased latching force and an IP67 protection rating, it ensures reliable operation under demanding conditions. The integrated M12 plug allows for quick and easy installation.

Technical Data:

Product Designation:

• AZ 17-02ZRK-ST

Article Number:

• 101140775

EAN:

• 4030661119748

eCl@ss Numbers:

• Version 12.0: 27-27-26-02
• Version 11.0: 27-27-26-02
• Version 9.0: 27-27-26-02

ETIM Numbers:

• Version 7.0: EC002592
• Version 6.0: EC002592

Approvals - Standards:

• Certificates: IFA, cULus, CCC
• Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1

General Data:

• Coding Level (EN ISO 14119): Low
• Operating Principle: Electromechanical
• Housing Material: Plastic, glass-fiber-reinforced thermoplastic, self-extinguishing
• Gross Weight: 85 g

Features:

• Increased Latching Force: Yes
• Number of Approach Directions: 2
• Number of Safety Contacts: 2
• Number of Cable Entries: 1

Safety Consideration:

• Standards: EN ISO 13849-1
• Performance Level, up to: c
• Category: 1
• B10D NC Contacts: 2,000,000 cycles
• Note: Electrical service life upon request.
• Service Life: 20 years

Safety Consideration - Fault Exclusion:

• Performance Level, up to: d
• Category: 3
• Note: For two-channel use with suitable logic unit.

Mechanical Data:

• Mechanical Service Life, Minimum: 1,000,000 cycles
• Latching Force: 30 N
• Forced Opening Travel: 11 mm
• Forced Opening Force per NC Contact, Minimum: 17 N
• Actuation Speed, Maximum: 2 m/s
• Mounting: Screws (2x M4)

Mechanical Data - Connection Technology:

• Connection Type: M12 plug, 4-pin, A-coded

Mechanical Data - Dimensions:

• Sensor Length: 30 mm
• Sensor Width: 30 mm
• Sensor Height: 78.5 mm

Environmental Conditions:

• Protection Class: IP67
• Operating Temperature: -30 to +80 °C
• Storage and Transport Temperature: -30 to +85 °C
• Permissible Altitude Above Sea Level, Maximum: 2,000 m

Environmental Conditions - Insulation Ratings:

• Rated Insulation Voltage Ui: 250 VAC
• Rated Impulse Withstand Voltage Uimp: 4 kV
• Overvoltage Category: III
• Pollution Degree: 3
• Rated Impulse Withstand Voltage, 4-pin Plug: 2.5 kV

Electrical Data:

Thermal Continuous Current: 10 A

Conditional Short-Circuit Current: 1,000 A

Switching Element: 2 NC contacts

Switching Principle: Slow-action, positive-opening NC contacts

Maximum Switching Frequency: 2,000 /h

Contact Material: Silver

Electrical Data - Safety Contacts:

Voltage (AC-15): 230 VAC

Current (AC-15): 4 A

Voltage (DC-13): 24 VDC

Current (DC-13): 4 A

Note: 4-pin plug

Additional Data:

Application Notes:

- Sliding protective equipment
- Removable protective equipment
- Rotating protective equipment

Included in Delivery:

Actuator not included.

Cover for unused opening to ensure dust protection.

Notes:

Custom coding available on request.

Type: AZ 17-02ZRK-ST
