Schmersal 101139960 AZ/AZM 415-B30-08 actuator content_copy

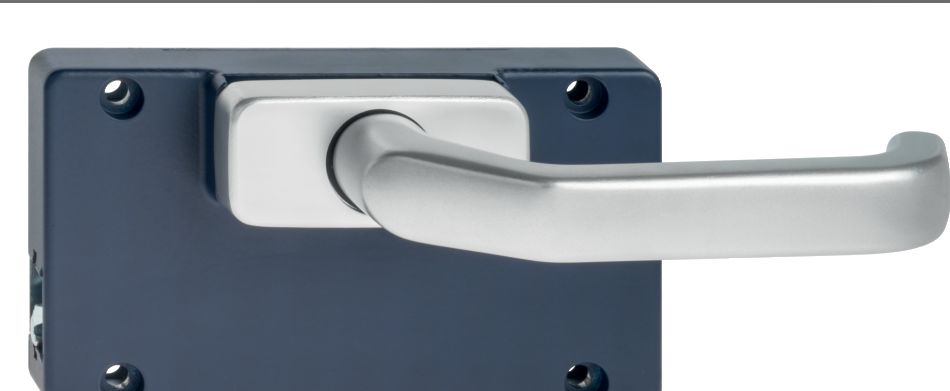

The AZ/AZM 415-B30-08 actuator by Schmersal is a reliable safety switch actuator specifically designed for industrial applications. With its robust housing made of coated light metal die-casting and an actuator made of zinc die-casting, it offers high resistance to mechanical stresses and environmental influences. The control element is made of aluminum, providing additional stability and a comfortable grip.

The actuator is mounted on the left side and is designed for external installation. With a high shear force of 25,000 N, it ensures maximum safety and stability in operation. The dimensions of 90 mm in length, 157 mm in width, and 105 mm in height make it compact and easy to install.

This actuator is ideal for use on safety doors and protective devices in various industrial sectors where high safety standards are required.
Technical Data:

Product Type Designation:

AZ/AZM 415-B30-08

Article Number (Order Number):

101139960

EAN (European Article Number):

4030661117256

eCl@ss Numbers:

Version 12.0: 27-27-26-06
Version 11.0: 27-27-26-06
Version 9.0: 27-27-26-06

ETIM Numbers:

Version 7.0: EC001487
Version 6.0: EC001487

General Data:

Material of Housing:

Light metal die-casting, coated

Material of Actuator:

Zinc die-casting

Material of Control Element:

Aluminum

Gross Weight:

816 g

Mechanical Data:

Door Hinge:

Left

Shear Force:

25,000 N

Actuator Mounting:

External

Mechanical Data - Dimensions:

Actuator Length:

90 mm

Actuator Width:

157 mm

Actuator Height:

105 mm

Note:

K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, 42279 Wuppertal
The provided data has been carefully checked. Images may differ from the original. Further technical details can be found in the user manual. Subject to technical changes and errors.
