Schmersal 101139959 AZ/AZM 415-B30-07 actuator content_copy

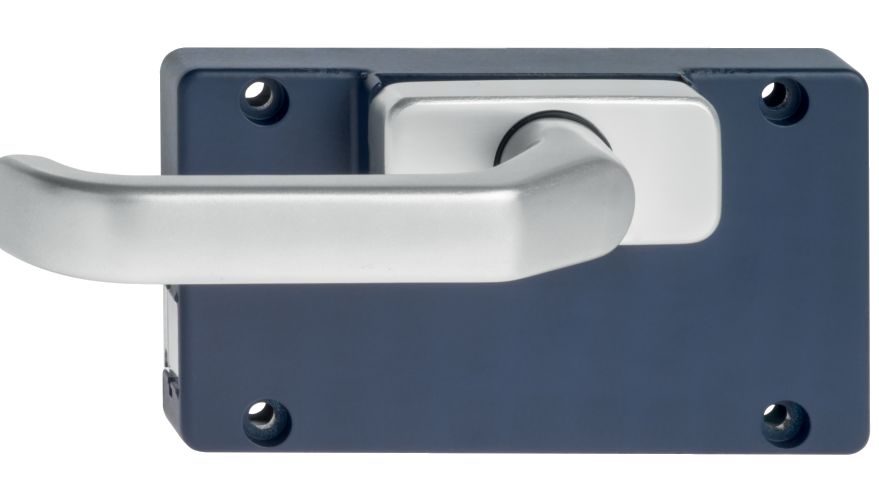

The AZ/AZM 415-B30-07 actuator by Schmersal is a high-quality and highly robust safety switch actuator specifically designed for industrial applications. Its housing is made of coated light metal die-casting, and the actuator itself is crafted from zinc die-casting, ensuring durability, longevity, and resistance to external influences.

The control element is made of aluminum, providing excellent wear resistance and a comfortable touch. The actuator is mounted on the right side and is intended for external installation. With an impressive shear force of 25,000 N, it offers maximum safety in use and withstands high mechanical loads.

The mechanical dimensions of the actuator are 90 mm in length, 157 mm in width, and 105 mm in height. Thanks to its compact size, the actuator is suitable for various safety doors and protective devices. Despite its robust build, the actuator remains manageable and easy to install, weighing 816 g.
Technical Data:

Product Type Designation:

AZ/AZM 415-B30-07

Article Number (Order Number):

101139959

EAN (European Article Number):

4030661117249

eCl@ss Numbers:

Version 12.0: 27-27-26-06
Version 11.0: 27-27-26-06
Version 9.0: 27-27-26-06

ETIM Numbers:

Version 7.0: EC001487
Version 6.0: EC001487

General Data:

Material of Housing:

Light metal die-casting, coated

Material of Actuator:

Zinc die-casting

Material of Control Element:

Aluminum

Gross Weight:

816 g

Mechanical Data:

Door Hinge:

Right

Shear Force:

25,000 N

Actuator Mounting:

External

Mechanical Data - Dimensions:

Actuator Length:

90 mm

Actuator Width:

157 mm

Actuator Height:

105 mm
