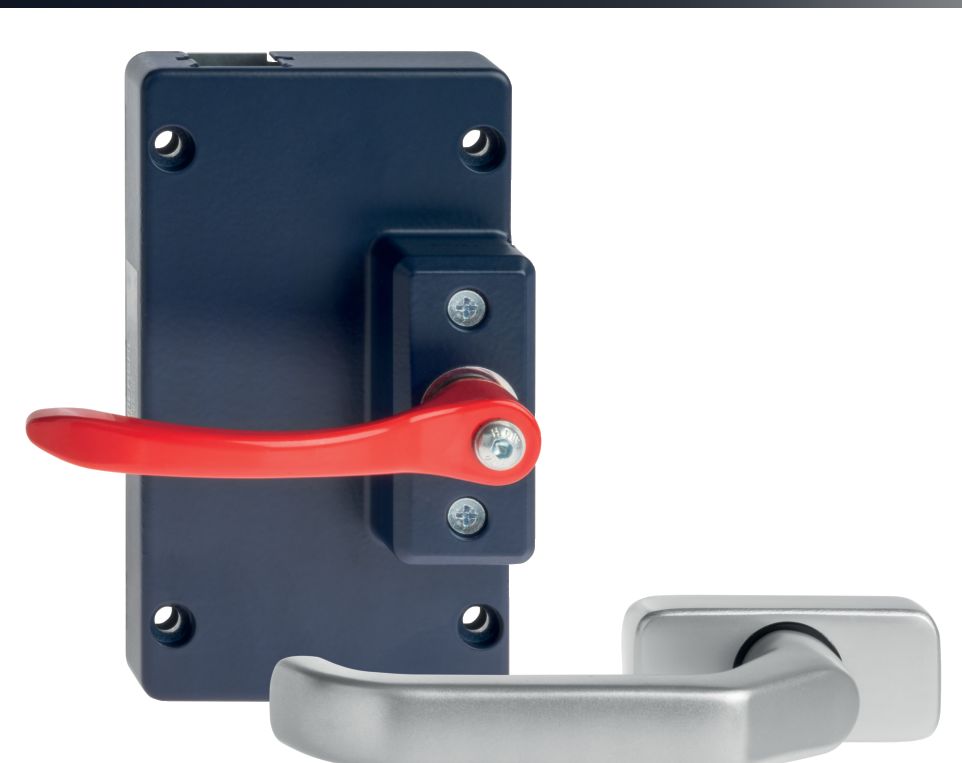

Schmersal AZ/AZM 415-B30-02 actuator 101139954
|
345,54 EUR |
|||||||||||
|
( 411,19 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1216078 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101139954 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101139954:
The housing is made of robust, coated light metal die-casting, while the actuator itself is made of zinc die-casting, and the control element is made of aluminum. The escape release is made of metal with a plastic coating, providing a comfortable grip for easy handling.
The actuator is mounted on the left side and is designed for internal installation. With an impressive shear force of 25,000 N, the actuator ensures maximum stability and safety. Its compact design allows for easy installation on various protective devices.
The panic handle function allows quick and easy door opening in case of an emergency, adding an extra layer of safety.
Technical Data:
Product Type Designation:
AZ/AZM 415-B30-02
Article Number (Order Number):
101139954
EAN (European Article Number):
4030661117225
eCl@ss Numbers:
Version 12.0: 27-27-26-06
Version 11.0: 27-27-26-06
Version 9.0: 27-27-26-06
ETIM Numbers:
Version 7.0: EC001487
Version 6.0: EC001487
General Data:
Material of Housing:
Light metal die-casting, coated
Material of Actuator:
Zinc die-casting
Material of Control Element:
Aluminum
Material of Escape Release:
Metal, plastic-coated
Gross Weight:
1.070 g
General Data - Features:
Panic Handle:
Yes
Mechanical Data:
Door Hinge:
Left
Shear Force:
25,000 N
Actuator Mounting:
Internal
Mechanical Data - Dimensions:
Actuator Length:
34 mm
Actuator Width:
75 mm
Actuator Height:
78 mm
Escape Release Length:
90 mm
Escape Release Width:
157 mm
Escape Release Height:
82 mm
Note:
K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, 42279 Wuppertal
The provided data has been carefully checked. Images may differ from the original. Further technical details can be found in the user manual. Subject to technical changes and errors.
Type: AZ/AZM 415-B30-02
