Schmersal AZ 17/170-B15 actuator 101139789

Your rating:
Average rating
Rating for Schmersal AZ 17/170-B15 actuator 101139789
( 4.7 / 5 ) 15 ratings
Schmersal 101139789
This image may differ from the desired article.
10,45 EUR
( 12,44 EUR incl. VAT )
2025-11-16Delivery time on requestinfo_outline
1x Schmersal AZ 17/170-B15 actuator 101139789
Lieske Part No.:1216079
Mfg Part No: 101139789
Weight:0.12 kg
Graduated prices net
From piecesPrice per pieces
1510,29 EUR
3010,14 EUR
709,98 EUR
1009,82 EUR

Product information for Schmersal 101139789:

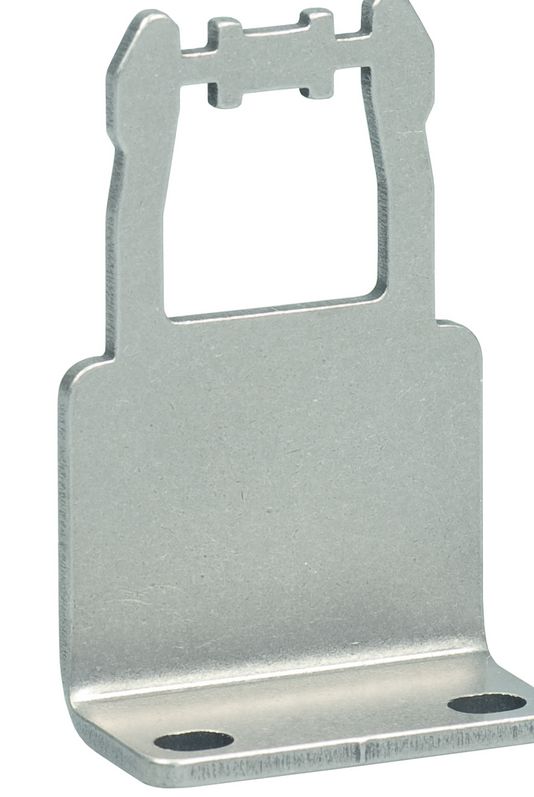

The AZ 17/170-B15 actuator from Schmersal is an angled safety switch actuator designed for industrial applications. Made of stainless steel, this actuator provides excellent corrosion resistance and durability, making it suitable for use in harsh environments.

The angled design allows for flexible applications on various protective devices. The minimum actuation radius is 140 mm when the actuator is guided via its narrow side and 200 mm via its wide side, allowing precise adjustments to different safety requirements.

An important installation note states that the hinge pivot point and the top edge of the safety switch must be aligned, with an additional clearance of 25 mm.

The actuator is lightweight and easy to install, with a gross weight of only 27 g.
Technical Data:

Product Type Designation:


AZ 17/170-B15

Article Number (Order Number):


101139789

EAN (European Article Number):


4030661282275

eCl@ss Numbers:

Version 12.0: 27-27-26-06
Version 11.0: 27-27-26-06
Version 9.0: 27-27-26-06

ETIM Numbers:


Version 7.0: EC001487
Version 6.0: EC001487

General Data:


Material of Actuator:

Stainless Steel

Gross Weight:


27 g

Mechanical Data:


Minimum Actuation Radius:

140 mm

Actuator Type:


Angled

Note (General):


Minimum possible actuation radius for rotating safety guards via the narrow side of the actuator: 140 mm
Minimum possible actuation radius for rotating safety guards via the wide side of the actuator: 200 mm
The pivot point of the hinge and the top edge of the safety switch must be aligned, with an additional clearance of 25 mm
Type: AZ 17/170-B15
