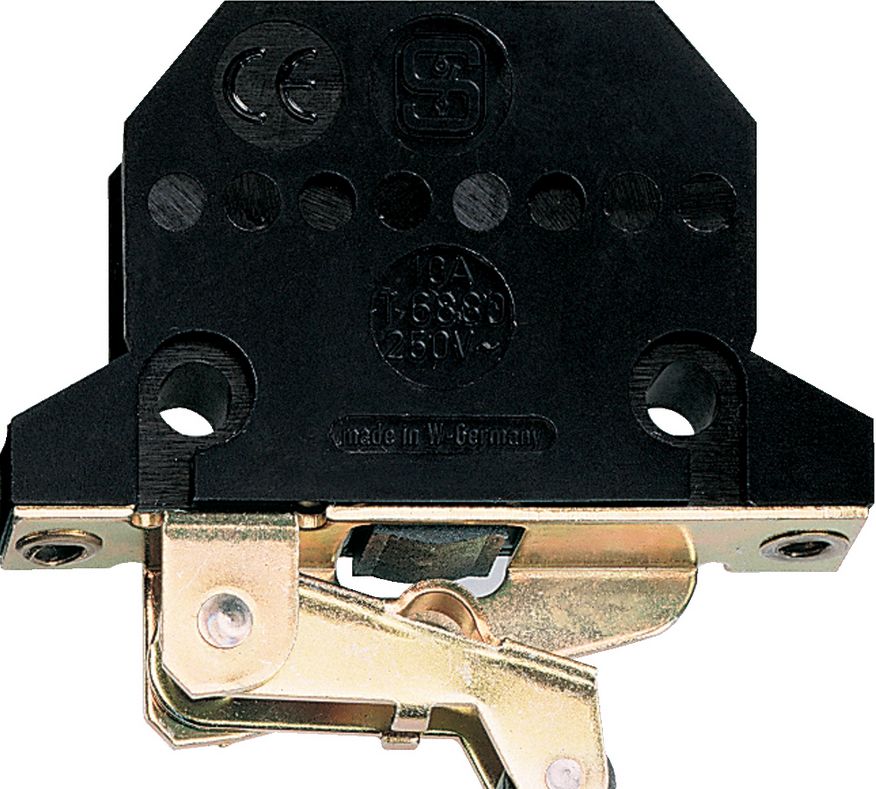

Schmersal Z6881-11-1-80R micro switch 101138617

The Z 6881-11-1-80R position switch is a precise switching device designed to monitor mechanical movements in machines and systems. Its robust housing made from glass-fiber reinforced plastic and a thermoplastic actuator makes it suitable for use in demanding industrial environments. The switch complies with international standards such as EN IEC 60947-5-1 and is globally approved with cULus and CCC certifications.

This switch features one NC contact and one NO contact, offering a mechanical lifespan of at least 1 million switching cycles. The position switch operates with a snap-action switching mechanism, ensuring fast switching times with a maximum contact bounce time of 3 ms. The operating force is 12 N, making it ideal for applications that require medium actuation force.

The switch is easy to install, thanks to its screw terminal connection with a maximum wire cross-section of 2 x 1.5 mm². It is designed for use in control circuits according to the AC-15 and DC-13 categories and can operate in ambient temperatures ranging from -30 to +85 °C. The device offers a protection rating of IP40, while the terminals without a matching plug have a protection rating of IP40.

Technical Data:

Product Type:

• Z 6881-11-1-80R

Order Number:

• 101138617

EAN:

• 4030661281421

eCl@ss Numbers:

• Version 12.0: 27-27-06-01
• Version 11.0: 27-27-06-01
• Version 9.0: 27-27-06-01

ETIM Numbers:

• Version 7.0: EC000030
• Version 6.0: EC000030

Approvals:

• cULus
• CCC

Standards:

• EN IEC 60947-5-1

Housing Material:

• Plastic, glass-fiber reinforced thermoplastic

Actuator Material:

• Thermoplastic

Gross Weight:

• 40 g

Features:

• Number of NC contacts: 1
• Number of NO contacts: 1

Mechanical Data:

• Mechanical lifespan: 1,000,000 cycles
• Operating force: 12 N
• Contact opening width: > 2 x 1.25 mm
• Actuating speed: 1 mm/min
• Minimum actuating speed: 1 mm/min
• Switching point repeat accuracy: 0.02 mm

Connection Technology:

• Maximum wire cross-section: 2 x 1.5 mm²
• Connection type: Screw terminal

Environmental Conditions:

• Protection rating: IP40
• Terminal protection rating: IP40 (without matching plug)
• Ambient temperature: -30 ... +85 °C

Insulation Values:

• Rated insulation voltage Ui: 250 VAC
• Rated impulse withstand voltage Uimp: 4 kV
• Pollution degree: 3

Electrical Data:

Thermal continuous current: 10 A

Voltage, utilization category AC-15: 230 VAC

Current, utilization category AC-15: 2.5 A

Voltage, utilization category DC-13: 24 VDC

Current, utilization category DC-13: 6 A

Switching principle: Snap-action switching

Contact bounce time, maximum: 3 ms

Maximum switching frequency: 10,000 /h

Switching time, maximum: 5 ms

Contact material: Silver

Type: Z 6881-11-1-80R
