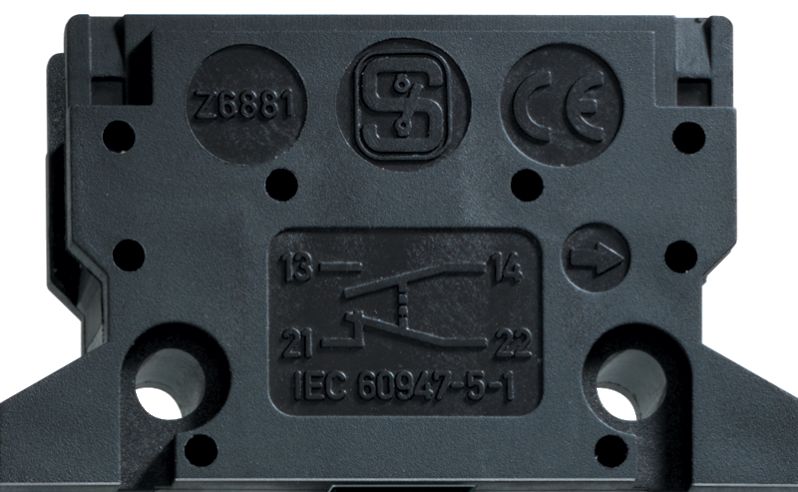

Schmersal Z6881-11-1 micro switch 101138616
|
46,80 EUR |
|||||||||||
|
( 55,69 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1311749 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101138616 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101138616:
Product Description in English:
The Z 6881-11-1 position switch is a reliable switching device designed to monitor mechanical movements in machines and systems. It is developed for industrial applications requiring precise and fast detection of movements. With its robust construction made from glass-fiber reinforced plastic and a thermoplastic actuator, the switch offers durability and resistance to mechanical stress.
This switch is equipped with one NC contact and one NO contact, achieving a mechanical lifespan of at least 1 million switching cycles. The device features a snap-action switching mechanism, ensuring fast switching times and a maximum contact bounce time of 3 ms. With an operating force of 20 N and a contact opening width of more than 2 x 1.25 mm, it is well-suited for applications with higher mechanical demands.
The Z 6881-11-1 position switch is easy to install thanks to its screw terminal connections with a maximum wire cross-section of 2 x 1.5 mm². It is designed for use in control circuits according to the AC-15 and DC-13 categories and is suitable for ambient temperatures ranging from -30 to +85 °C. The device offers a protection rating of IP40, while the terminals without a matching plug have a protection rating of IP40.
Technical Data:
Product Type:- Z 6881-11-1
Order Number:
- 101138616
EAN:
- 4030661281414
eCl@ss Numbers:
- Version 12.0: 27-27-06-01
- Version 11.0: 27-27-06-01
- Version 9.0: 27-27-06-01
ETIM Numbers:
- Version 7.0: EC000030
- Version 6.0: EC000030
Approvals:
- cULus
- CCC
Standards:
- EN IEC 60947-5-1
Housing Material:
- Plastic, glass-fiber reinforced thermoplastic
Actuator Material:
- Thermoplastic
Gross Weight:
- 25 g
Features:
- Number of NC contacts: 1
- Number of NO contacts: 1
Mechanical Data:
- Mechanical lifespan: 1,000,000 cycles
- Operating force: 20 N
- Contact opening width: > 2 x 1.25 mm
- Actuating speed: 1 mm/min
- Minimum actuating speed: 1 mm/min
- Switching point repeat accuracy: 0.02 mm
Connection Technology:
- Maximum wire cross-section: 2 x 1.5 mm²
- Connection type: Screw terminal
Environmental Conditions:
- Protection rating: IP40
- Terminal protection rating: IP40 (without matching plug)
- Ambient temperature: -30 ... +85 °C
Insulation Values:
- Rated insulation voltage Ui: 250 VAC
- Rated impulse withstand voltage Uimp: 4 kV
- Pollution degree: 3
Electrical Data:
Type: Z 6881-11-1
Questions & answers
What is the delivery time of Schmersal Z6881-11-1 micro switch 101138616?
The article Schmersal Z6881-11-1 micro switch 101138616 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101138616 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal Z6881-11-1 micro switch 101138616 always at the best possible price. We can give you a discount of 2% on Schmersal Z6881-11-1 micro switch 101138616 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Schmersal Z6881-11-1 micro switch 101138616 we can offer you a price of 46,10 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
