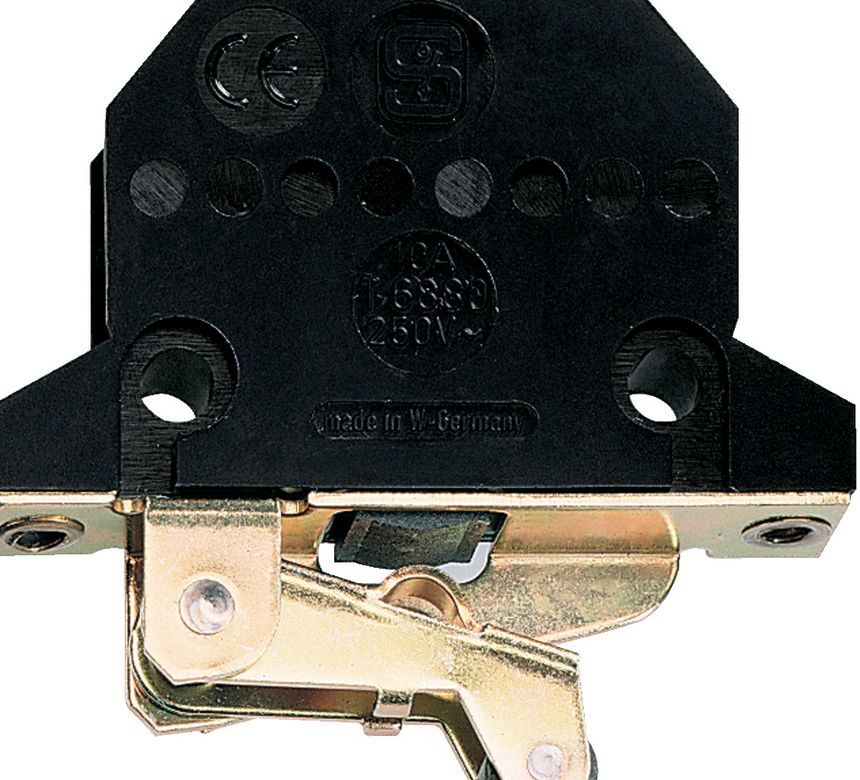

Schmersal T6881-11-1-80R micro switch 101138615
|
37,04 EUR |
|||||||||||
|
( 44,08 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1311765 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101138615 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101138615:
Product Description in English:
The T 6881-11-1-80R position switch is a precise switching device designed to monitor mechanical movements in machines and systems. With its robust construction made from glass-fiber reinforced plastic and a thermoplastic actuator, this switch offers high reliability and durability. Certified according to international standards such as EN IEC 60947-5-1 and approved with cULus and CCC certifications, this switch is suitable for global industrial applications.
The position switch is equipped with one NC contact and one NO contact, achieving an impressive mechanical lifespan of at least 30 million switching cycles. It operates with a reduced actuating force of only 4 N, making it ideal for applications that require low actuating force. The precise switching point repeat accuracy of 0.02 mm ensures reliable performance with every operation.
Thanks to its screw terminal connection with a maximum wire cross-section of 2 x 1.5 mm², the switch is easy to install. It is designed for control circuits according to AC-15 and DC-13 categories and offers a protection rating of IP40, while the terminals without a matching plug have a protection rating of IP40.
Technical Data:
Product Type:- T 6881-11-1-80R
Order Number:
- 101138615
EAN:
- 4030661281407
eCl@ss Numbers:
- Version 12.0: 27-27-06-01
- Version 11.0: 27-27-06-01
- Version 9.0: 27-27-06-01
ETIM Numbers:
- Version 7.0: EC000030
- Version 6.0: EC000030
Approvals:
- cULus
- CCC
Standards:
- EN IEC 60947-5-1
Housing Material:
- Plastic, glass-fiber reinforced thermoplastic
Actuator Material:
- Thermoplastic
Gross Weight:
- 35 g
Features:
- Number of NC contacts: 1
- Number of NO contacts: 1
Mechanical Data:
- Mechanical lifespan: 30,000,000 cycles
- Operating force: 4 N
- Contact opening width: > 2 x 1.25 mm
- Actuating speed: 60 mm/min
- Minimum actuating speed: 1 mm/min
- Switching point repeat accuracy: 0.02 mm
Connection Technology:
- Maximum wire cross-section: 2 x 1.5 mm²
- Connection type: Screw terminal
Environmental Conditions:
Insulation Values:
- Rated insulation voltage Ui: 250 VAC
- Rated impulse withstand voltage Uimp: 4 kV
- Pollution degree: 3
Electrical Data:
Type: T 6881-11-1-80R
