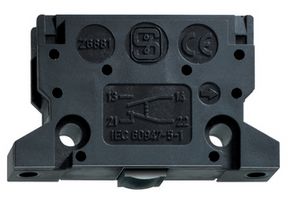

Schmersal T6881-11-1 micro switch 101138614
|
27,65 EUR |
|||||||||||
|
( 32,90 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1311751 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101138614 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101138614:
Product Description in English:
The T 6881-11-1 position switch is a precise switching device designed for monitoring mechanical movements in machines and systems. This switch is suitable for demanding applications where high switching accuracy and durability are required. Its robust construction, featuring a glass-fiber reinforced plastic housing and a thermoplastic actuator, makes the T 6881-11-1 ideal for industrial environments.
The switch is equipped with one NC contact and one NO contact, achieving an impressive mechanical lifespan of at least 30 million switching cycles. The slow-action switching mechanism ensures reliable contact operation with a maximum contact bounce time of just 3 ms. With an actuating travel of more than 2 x 1.25 mm and an operating force of 7 N, the switch provides precise and repeatable triggering.
Thanks to its compact design and simple screw terminal connection with a maximum wire cross-section of 2 x 1.5 mm², the position switch is easy to install. The T 6881-11-1 is designed for use in control circuits according to AC-15 and DC-13 categories and offers a protection rating of IP40.
Technical Data:
Product Type:- T 6881-11-1
Order Number:
- 101138614
EAN:
- 4030661281391
eCl@ss Numbers:
- Version 12.0: 27-27-06-01
- Version 11.0: 27-27-06-01
- Version 9.0: 27-27-06-01
ETIM Numbers:
- Version 7.0: EC000030
- Version 6.0: EC000030
Approvals:
- cULus
- CCC
Standards:
- EN IEC 60947-5-1
Housing Material:
- Plastic, glass-fiber reinforced thermoplastic
Actuator Material:
- Thermoplastic
Gross Weight:
- 25 g
Features:
- Number of NC contacts: 1
- Number of NO contacts: 1
Mechanical Data:
- Mechanical lifespan: 30,000,000 cycles
- Operating force: 7 N
- Contact opening width: > 2 x 1.25 mm
- Actuating speed: 60 mm/min
- Minimum actuating speed: 1 mm/min
- Switching point repeat accuracy: 0.02 mm
Connection Technology:
- Maximum wire cross-section: 2 x 1.5 mm²
- Connection type: Screw terminal
Environmental Conditions:
Insulation Values:
- Rated insulation voltage Ui: 250 VAC
- Rated impulse withstand voltage Uimp: 4 kV
- Pollution degree: 3
Electrical Data:
Type: T 6881-11-1
Questions & answers
What is the delivery time of Schmersal T6881-11-1 micro switch 101138614?
The article Schmersal T6881-11-1 micro switch 101138614 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101138614 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal T6881-11-1 micro switch 101138614 always at the best possible price. We can give you a discount of 2% on Schmersal T6881-11-1 micro switch 101138614 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Schmersal T6881-11-1 micro switch 101138614 we can offer you a price of 27,24 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
