Schmersal IFL 10-30L-10TP 4.0M inductive proximity switch 101137852
|
108,16 EUR |
|||||||||||
|
( 128,71 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1592311 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101137852 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101137852:
Product Description in English:

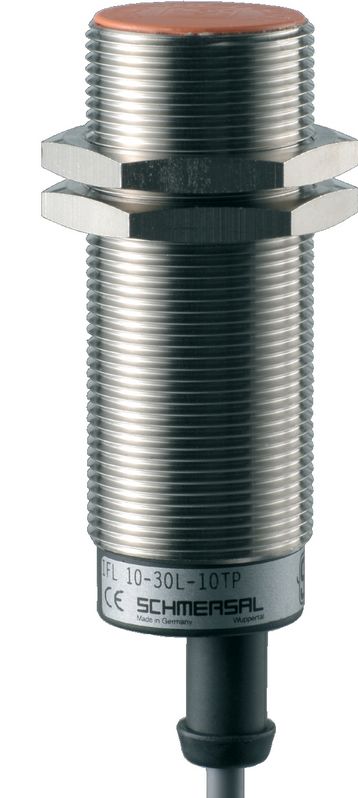

The cylindrical proximity switch IFL 10-30L-10TP 4,0M ensures reliable detection of objects without direct contact. Its robust brass housing with nickel plating is ideal for flush-mount applications. Equipped with a yellow status LED and a 4-meter PVC cable, the proximity switch delivers precise and stable sensing distances. Designed for industrial environments, it features IP67 protection and operates over a wide temperature range.
Technical Data:
Order Details:
- Product Type Designation: IFL 10-30L-10TP 4,0M
- Article Number: 101137852
- EAN: 4030661281032
eCl@ss and ETIM Numbers:
- eCl@ss Version 12.0: 27-27-40-01
- ETIM Version 7.0: EC002714
Approvals and Regulations:
- Certificates: CCC
- Standards: DIN VDE 0660-208, EN IEC 60947-5-2
General Information:
- Housing Design: Cylinder, threaded
- Housing Material: Brass, nickel-plated
- Active Face Material: Plastic
- Cable Material: PVC
- Gross Weight: 270 g
Features:
- Integrated Indicator: Yellow LED
- Cable Gland: Yes
- Number of Conductors: 3
Mechanical Data:
- Nut Tightening Torque: max. 30 Nm
- Nominal Sensing Distance: 10 mm
- Cable Length: 4 m
- Connection Type: Cable, conductor cross-section 0.34 mm²
- Sensor Thread: M30
- Wrench Size: 36 SW
- Sensor Length: 100 mm
Environmental Conditions:
- Protection Class: IP67
- Operating Temperature: -25 °C to +70 °C
- Shock Resistance: 30 g / 11 ms
- Vibration Resistance: 10–55 Hz, amplitude 1 mm
Electrical Data:
- Voltage Range: DC
- Operating Voltage: 10–30 VDC
- Operating Current: 200 mA
- Switching Element: Normally Open (NO), p-switching
- Protective Circuits: Inductive protection, reverse polarity protection, overload protection, short circuit protection
- Switching Frequency: approx. 350 Hz
Note:
- Clamps can be provided instead of nuts upon request.
Type: IFL 10-30L-10TP 4,0M
