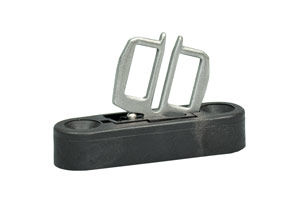

Schmersal 101137434 AZ 15/16-B6 actuator
|
-13% 11,11 EUR 12,79 EUR |
|
|
( 13,22 EUR incl. VAT ) ≈ £9.27 | ≈ $12.41 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 696393 |
|---|---|
| Mfg Part No: | 101137434 |
| UPC/EAN: | 4030661104706 |
| Weight: | 0.123 kg |
| Type: | AZ 15/16-B6 |
Product information for Schmersal 101137434:
The actuator has a low coding level according to EN ISO 14119 and features an adjustable actuation radius, making it suitable for flexible installation on various safety doors or flaps.
The actuation radius can be adjusted to a minimum of 25 mm (narrow side) or 38 mm (broad side) using a 2.5 mm hex key. To ensure proper function, the hinge pivot point and the top edge of the safety switch must be aligned with an 11 mm offset.
Technical Data – AZ 15/16-B6 KPL.:
Order Information:
Product Type Designation: AZ 15/16-B6 KPL.
Article Number: 101137434
EAN: 4030661104706
General Data:
Coding Level according to EN ISO 14119: low
Actuator Material: Stainless Steel (V2A)
Gross Weight: 20 g
Mechanical Data:
Minimum Actuation Radius: 25 mm
Actuator Type: movable
Notes:
The hinge pivot point and the top edge of the safety switch must be aligned, with an 11 mm offset.
The actuation radius can be adjusted to 25 mm (narrow side) or 38 mm (broad side) using a 2.5 mm hex key.
