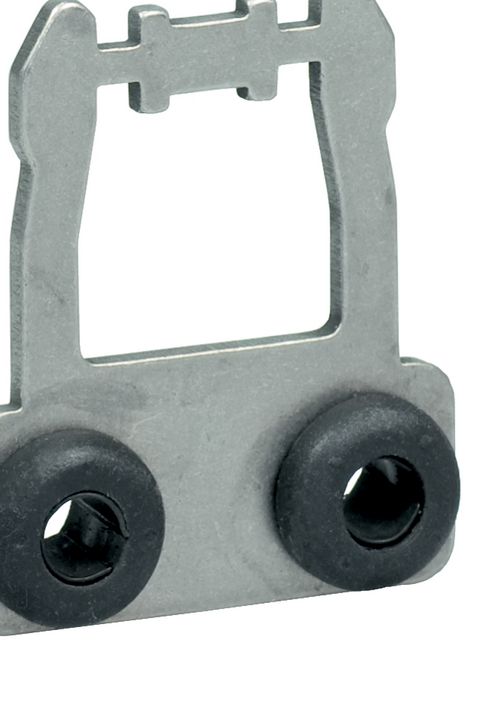

Schmersal AZ 17/170-B1-2245 actuator 101137406
|
8,63 EUR |
|||||||||||
|
( 10,27 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1216082 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101137406 | ||||||||||
| Weight: | 0.01 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101137406:
Product description in English:
The AZ 17/170-B1-2245 actuator is a high-quality component designed for the AZ 17 series safety switches. Made of durable stainless steel (V2A), the actuator provides excellent resistance to corrosion and mechanical stress, making it ideal for industrial applications.
The actuator features a straight design with rubber mounting, ensuring precise and long-lasting functionality. It is specifically designed for rotating protective devices, with a minimum actuation radius of 200 mm across the broad side. During installation, the hinge pivot point and the top edge of the safety switch must form a plane elevated by an additional 13 mm.
The maximum tightening torque for mounting the actuator is 200 Ncm, ensuring secure and stable attachment. With a gross weight of only 15 g, the actuator is lightweight and easy to handle.
Technical specifications:
Ordering information:
- Product designation: Actuator AZ 17/170-B1-2245
- Article number: 101137406
- EAN: 4030661280905
- eCl@ss number: 27-27-26-06
- ETIM number: EC001487
General specifications:
- Material: Stainless steel (V2A)
- Coding level per EN ISO 14119: Low
- Gross weight: 15 g
Mechanical specifications:
- Design: Straight, rubber-mounted
- Minimum actuation radius: 200 mm across the broad side
- Tightening torque: Maximum 200 Ncm
Notes:
- The hinge pivot point and the top edge of the safety switch must form a plane (+13 mm).
- Additional technical data can be found in the operating manual.
- Illustrations may differ from the actual product.
Type: AZ 17/170-B1-2245
Questions & answers
What is the delivery time of Schmersal AZ 17/170-B1-2245 actuator 101137406?
The article Schmersal AZ 17/170-B1-2245 actuator 101137406 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101137406 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZ 17/170-B1-2245 actuator 101137406 always at the best possible price. We can give you a discount of 2% on Schmersal AZ 17/170-B1-2245 actuator 101137406 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 25 pieces of Schmersal AZ 17/170-B1-2245 actuator 101137406 we can offer you a price of 8,50 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
