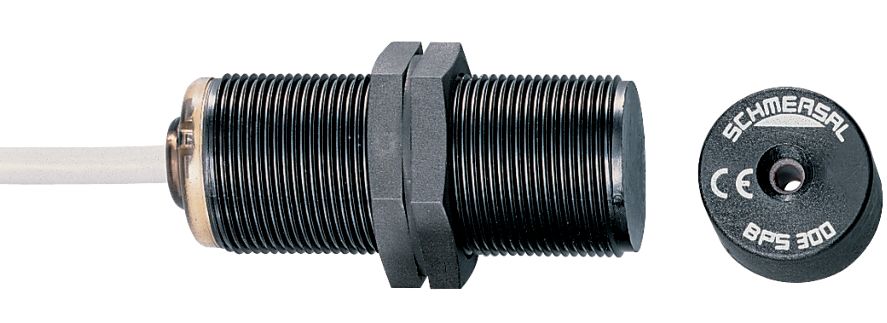

Schmersal BNS 300-01ZG-2230 safety sensor 101134031
|
153,29 EUR |
|||||||||||
|
( 182,42 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1216088 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101134031 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101134031:
The BNS 300-01ZG-2230 is a magnetic safety sensor designed for monitoring protective devices such as doors and covers. With its robust construction made of glass-fiber-reinforced plastic and integrated status indication system, this sensor is ideal for applications where safety and reliability are critical.
Technical Data:
Product Designation:
- BNS 300-01ZG-2230
Article Number:
- 101134031
EAN:
- 4030661279862
eCl@ss Numbers:
- Version 12.0: 27-27-44-01
- Version 11.0: 27-27-24-02
- Version 9.0: 27-27-24-02
ETIM Numbers:
- Version 7.0: EC002544
- Version 6.0: EC002544
Approvals - Standards:
- Certificates: cULus
- Standards: BG-GS-ET-14, EN IEC 60947-5-3
General Data:
- Coding Level (EN ISO 14119): Low
- Operating Principle: Magnetic
- Installation Conditions: Quasi-flush
- Housing Material: Plastic, glass-fiber-reinforced thermoplastic
- Material of Nut: Thermoplastic
- Risk Time, Maximum: 50 ms
- Gross Weight: 130 g
Features:
- Coding: Yes
- Integrated Status Display: Yes (LED lights up when the protective door is closed)
- Integrated Evaluation Unit: Yes
- Number of NC Contacts: 1
- Number of Safety Contacts: 1
- Number of Wires: 5
Safety Consideration:
- Standards: EN ISO 13849-1
- Service Life: 20 years
Safety Consideration - Safety Outputs:
- B10D NC Contacts: 20,000,000 cycles
Mechanical Data:
- Actuation Element: Magnet
- Movement Direction: Frontal to the active surface
- Maximum Tightening Torque of Nuts: 3 Nm
Switching Distances (EN IEC 60947-5-3):
- Assured Switching Distance ON (Sao): 5 mm
- Assured Switching Distance OFF (Sar): 15 mm
Mechanical Data - Connection Technology:
- Cable Length: 1 m
- Connection Type: Cable
- Conductor Cross-Section: 0.75 mm² (18 AWG)
- Cable Material: PVC
Mechanical Data - Dimensions:
- ISO Thread: M30
- Wrench Size: 36 SW
- Sensor Length: 78 mm
Environmental Conditions:
- Protection Class: IP67
- Operating Temperature: -25 to +55 °C
- Storage and Transport Temperature: -25 to +70 °C
- Vibration Resistance: 10 to 55 Hz, amplitude 1 mm
- Shock Resistance: 30 g / 11 ms
Electrical Data:
Electrical Data - Relay Outputs:
Included in Delivery:
Accessories:
Notes:
Type: BNS 300-01ZG-2230
Questions & answers
What is the delivery time of Schmersal BNS 300-01ZG-2230 safety sensor 101134031?
The article Schmersal BNS 300-01ZG-2230 safety sensor 101134031 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101134031 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal BNS 300-01ZG-2230 safety sensor 101134031 always at the best possible price. We can give you a discount of 2% on Schmersal BNS 300-01ZG-2230 safety sensor 101134031 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Schmersal BNS 300-01ZG-2230 safety sensor 101134031 we can offer you a price of 148,69 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
