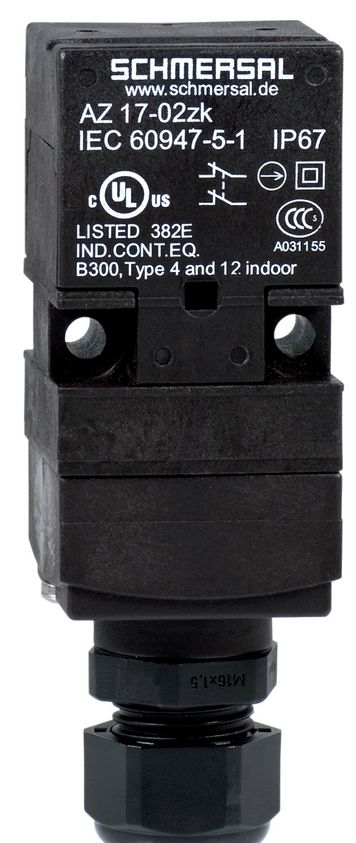

Schmersal AZ 17-02ZRK safety switch with separate actuator 101133968

The AZ 17-02ZRK safety switch is designed for safety-critical applications, including sliding, removable, and rotating guards. With a robust housing made of glass-fiber-reinforced thermoplastic and cutting terminal technology, this switch ensures easy installation and high reliability.

Technical Data:

Product Designation:

• AZ 17-02ZRK

Article Number:

• 101133968

EAN:

• 4030661050959

eCl@ss Numbers:

• Version 12.0: 27-27-26-02
• Version 11.0: 27-27-26-02
• Version 9.0: 27-27-26-02

ETIM Numbers:

• Version 7.0: EC002592
• Version 6.0: EC002592

Approvals - Standards:

• Certificates: IFA, cULus, CCC
• Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1

General Data:

• Coding Level (EN ISO 14119): Low
• Operating Principle: Electromechanical
• Housing Material: Plastic, glass-fiber-reinforced thermoplastic, self-extinguishing
• Gross Weight: 85 g

Features:

• Increased Latching Force: Yes
• Number of Approach Directions: 2
• Number of Safety Contacts: 2
• Number of Cable Entries: 1

Safety Consideration:

• Performance Level: Up to c
• Category: 1
• B10D NC Contacts: 2,000,000 cycles
• Service Life: 20 years

Mechanical Data:

• Minimum Mechanical Lifetime: 1,000,000 cycles
• Latching Force: 30 N
• Positive Opening Distance: 11 mm
• Minimum Positive Opening Force per NC Contact: 17 N
• Maximum Operating Speed: 2 m/s
• Mounting: Screws (2x M4, Tightening Torque: 0.7-1 Nm, Torx T10)

Mechanical Data - Connection Technology:

• Cable Entry: M16 x 1.5
• Connection Type: Cutting terminal technology
• Conductor Cross-Section: 0.75-1 mm²
• Permissible Cable Type: Flexible

Mechanical Data - Dimensions:

• Sensor Length: 30 mm
• Sensor Width: 30 mm
• Sensor Height: 60 mm

Environmental Conditions:

• Protection Class: IP67
• Operating Temperature: -30 to +80 °C
• Storage and Transport Temperature: -30 to +85 °C
• Maximum Installation Height: 2,000 m

Electrical Data:

• Thermal Continuous Current: 10 A
• Conditional Short-Circuit Current: 1,000 A
• Switching Element: 2 NC
• Switching Principle: Slow-action, positive-opening contacts
• Maximum Switching Frequency: 2,000 /h

Electrical Data - Safety Contacts:

• Voltage, Utilization Category AC-15: 230 VAC, Current: 4 A
• Voltage, Utilization Category DC-13: 24 VDC, Current: 4 A

Additional Information:

Applications:

- Sliding guard
- Removable guard
- Rotating guard

Included in Delivery:

Slot cover for dust-proof sealing of unused openings

Notes:

Cutting terminal technology allows easy connection of flexible cables without the use of ferrules.

Type: AZ 17-02ZRK
