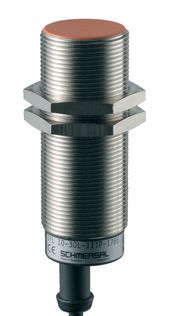

Schmersal 101127017 Inductive proximity switches, IFL 10-30L-10/01P
|
108,38 EUR |
|||||||||||
|
( 128,97 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 841983 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101127017 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101127017:
The proximity sensor has a nominal sensing distance of 10 mm and a switching frequency of approximately 350 Hz, ensuring both precision and speed. Its integrated yellow LED provides operational status feedback. The device supports both normally open (NO) and normally closed (NC) switching elements and includes protective circuits for inductive and polarity errors.
With a length of 118 mm, an M30 thread, and a 36 SW wrench size, the sensor is easy to install. Its operating temperature range of -25 °C to +70 °C, combined with high shock and vibration resistance, guarantees reliable performance even under extreme conditions.
Note: Optional clamp brackets can be supplied instead of nuts. Programming is done in the connection space by repositioning the connector.
Technical Data:
Ordering Details:
- Product Type: IFL 10-30L-10/01P
- Part Number: 101127017
- EAN: 4030661278230
- eCl@ss Number: 27-27-40-01
- ETIM Number: EC002714
Approvals:
- Certifications: CCC
- Standards: DIN VDE 0660-208, EN IEC 60947-5-2
General Data:
- Housing Design: Cylinder, threaded
- Housing Material: Nickel-plated brass
- Active Surface Material: Plastic
- Protection Rating: IP67
- Gross Weight: 140 g
Mechanical Properties:
- Nominal Sensing Distance (Sn): 10 mm
- ISO Thread: M30
- Wrench Size: 36 SW
- Length: 118 mm
- Max. Nut Tightening Torque: 30 Nm
Electrical Properties:
- Operating Voltage: 10 ... 60 VDC
- Max. Operating Current: 400 mA
- Switching Frequency: approx. 350 Hz
- Switching Element: Normally Open (NO) or Normally Closed (NC)
- Protective Circuits: Inductive protection, polarity protection
- Voltage Drop (Ud): max. 1.5 V at 0.4 A
Environmental Conditions:
- Operating Temperature: -25 °C to +70 °C
- Shock Resistance: 30 g / 11 ms
- Vibration Resistance: 10 ... 55 Hz, amplitude 1 mm
Status Display:
- Integrated LED: Yellow
Notes:
- Clamp brackets can be supplied instead of nuts.
- Programming is done by repositioning the connector in the connection space.
Type: IFL 10-30L-10/01P
