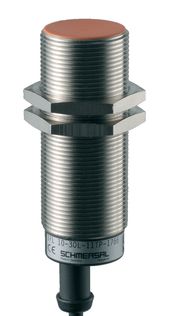

Schmersal IFL 10-30L-11TP1766 Industrial proximity switch 4L DC cylinder weight 101127008
|
151,30 EUR |
|
|
( 180,05 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1311778 |
|---|---|
| Mfg Part No: | 101127008 |
| Weight: | 0 kg |
Product information for Schmersal 101127008:
The IFL 10-30L-11TP-1766 is a high-performance cylindrical proximity switch with M30 threading, suitable for flush mounting. Its robust brass housing with a nickel-plated finish and IP67 protection rating ensures excellent durability in demanding industrial environments. With a p-switching output and antivalent switching elements (NO and NC), this sensor is ideal for versatile applications. The flexible Thermoflex cable sheath and high switching frequency make it particularly powerful.
Technical Data:
Product Designation:
- IFL 10-30L-11TP-1766
Article Number:
- 101127008
EAN:
- 4030661278162
eCl@ss Numbers:
- Version 12.0: 27-27-40-01
- Version 11.0: 27-27-01-01
- Version 9.0: 27-27-01-01
ETIM Numbers:
- Version 7.0: EC002714
- Version 6.0: EC002714
Approvals - Regulations:
- Certificates: CCC
- Standards: DIN VDE 0660-208, EN IEC 60947-5-2
General Data:
- Housing Design: Cylinder, threaded
- Mounting Conditions: Flush
- Housing Material: Brass
- Housing Coating Material: Nickel-plated
- Active Surface Material: Plastic
- Nut Material: Brass
- Gross Weight: 180 g
Features:
- Cable Grommet: Yes
- Number of Wires: 4
Mechanical Data:
- Maximum Nut Tightening Torque: 30 Nm
Switching Distances (EN IEC 60947-5-3):
- Nominal Switching Distance Sn: 10 mm
Connection Technology:
- Cable Length: 2 m
- Connection Type: Cable
- Wire Cross-Section: 0.25 mm²
- Cable Sheath Material: Thermoflex
Dimensions:
- Sensor Thread: M30
- Wrench Size: 36 SW
- Sensor Length: 100 mm
Environmental Conditions:
- Protection Class: IP67
- Ambient Temperature: +0 ... +110 °C
- Vibration Resistance: 10 … 55 Hz, Amplitude 1 mm
- Shock Resistance: 30 g / 11 ms
- Protection Class: 0
Electrical Data:
- Voltage Type: DC
- No-Load Current I0, Typical: 5.5 mA
- Rated Operating Voltage: 10 ... 60 VDC
- Rated Operating Current: 200 mA
- Switching Element: Normally Open (NO) and Normally Closed (NC) (antivalent)
- Integrated Protective Circuit: - Induction Protection
- Switching Frequency, Approx.: 150 Hz
- Polarity Reversal Protection
Digital Outputs:
- Voltage Drop Ud, Max.: 1 V
- Current at Voltage Drop Ud: 0.2 A
- Switching Element Design: p-switching
Note:
Type: IFL 10-30L-11TP-1766
