Schmersal 101122893 AZ 17/170-B1 actuator content_copy

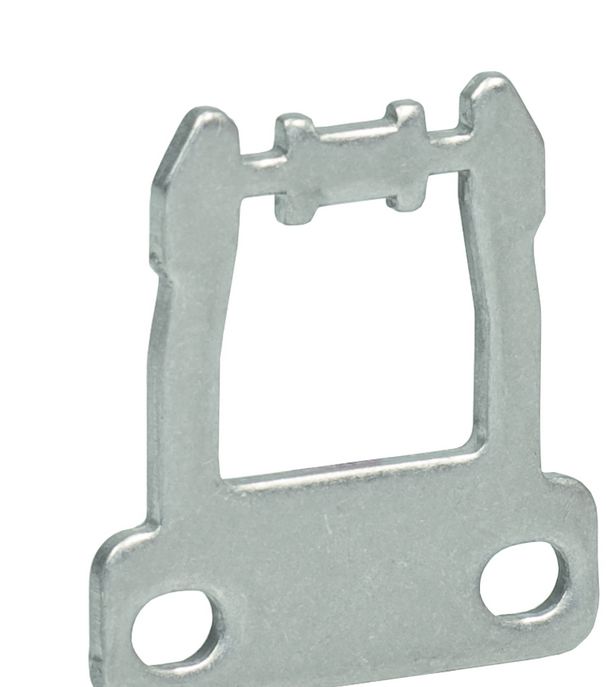

The BETAETIGER AZ 17/170-B1 is a high-quality, rigid actuator specifically designed for use with safety switches from the AZ 17 and AZ 170 series. It is made from stainless steel, ensuring excellent durability and resistance to corrosion.

The actuator is suitable for rotating protective devices such as doors, covers, or hatches. The minimum actuation radius is 140 mm when the protective device moves over the narrow side of the actuator, and 200 mm when moving over the wide side.

For correct installation, it is important to note that the hinge pivot point and the top edge of the safety switch must be aligned on the same plane, with an additional 10 mm offset.

With a lightweight design of just 14 g, the BETAETIGER AZ 17/170-B1 is easy to install and designed for long-term use in safety-critical applications.
Technical Data – BETAETIGER AZ 17/170-B1:

Order Information:

Product Type Designation: BETAETIGER AZ 17/170-B1
Article Number: 101122893
EAN: 4030661104393

General Data:

Actuator Material: Stainless Steel
Gross Weight: 14 g

Mechanical Data:

Minimum Actuation Radius: 140 mm
Actuator Type: Straight, rigid

Note:

The hinge pivot point and the top edge of the safety switch must be aligned on the same plane with an additional 10 mm offset.
Minimum actuation radius for rotating protective devices:
Over the narrow side of the actuator: 140 mm
Over the wide side of the actuator: 200 mm
