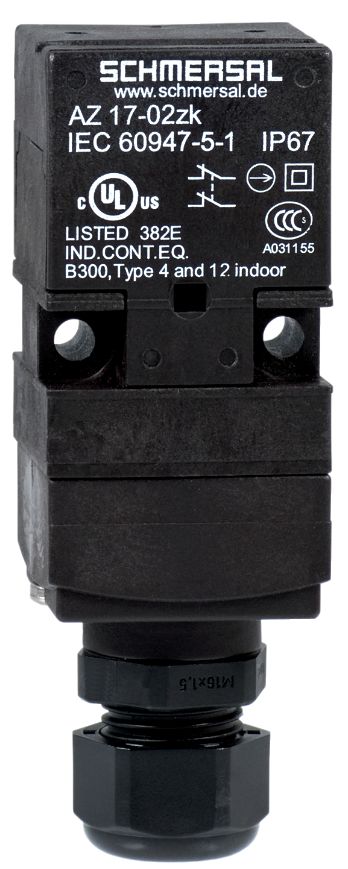

Schmersal AZ 17-02ZK safety switch with separate actuator 101121961

The AZ 17-02ZK safety switch is a compact and reliable electromechanical switch designed for safety-critical applications. It complies with EN ISO 13849-1 and EN ISO 14119 standards and offers an IP67 protection rating. Featuring two safety contacts (NC) and a lifespan of at least 1,000,000 operations, the switch is ideal for sliding, removable, or rotating guards. Ist cutting-clamp connection technology allows easy connection of flexible wires without ferrules.

Technical Data:

Product Designation:

• AZ 17-02ZK

Article Number:

• 101121961

EAN:

• 4030661049694

Certifications and Standards:

• IFA, cULus, CCC
• EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1

Coding Level:

• Low according to EN ISO 14119

Operating Principle:

• Electromechanical

Materials:

• Housing: Plastic, glass fiber-reinforced thermoplastic, self-extinguishing

Gross Weight:

• 85 g

Features:

• Number of Approach Directions: 2
• Number of Safety Contacts: 2
• Number of Cable Entries: 1

Safety Considerations:

• Performance Level: Up to PL c
• Category: 1 (up to 3 with dual-channel use and suitable logic unit)
• B10D NC: 2,000,000 cycles
• Service Life: 20 years

Mechanical Data:

• Mechanical Lifespan: Min. 1,000,000 cycles
• Latching Force: 5 N
• Positive Opening Distance: 11 mm
• Positive Opening Force per NC: Min. 17 N
• Actuation Speed: Max. 2 m/s
• Mounting: Screws (2x M4), Torx T10

Connection Technology:

• Cable Entry: M16 x 1.5
• Connection Type: Cutting-clamp technology
• Conductor Cross-section:
- Minimum: 0.75 mm²
- Maximum: 1 mm²

• Approved Cable Types: Flexible

Dimensions:

• Length: 30 mm
• Width: 30 mm
• Height: 60 mm

Environmental Conditions:

• Protection Rating: IP67
• Ambient Temperature: -30 °C to +80 °C
• Storage and Transport Temperature: -30 °C to +85 °C

Insulation Ratings:

• Rated Insulation Voltage: 250 VAC
• Rated Impulse Withstand Voltage: 4 kV
• Overvoltage Category: III
• Pollution Degree: 3

Electrical Data:

Thermal Continuous Current: 10 A

Rated Short-circuit Current: 1,000 A

Switching Element: 2 NC

Switching Principle: Slow-action, positive-opening NC

Maximum Switching Frequency: 2,000 /h

Electrical Data - Safety Contacts:

Voltage (AC-15): 230 VAC, Current: 4 A

Voltage (DC-13): 24 VDC, Current: 4 A

Other Data:

Applications: Sliding, removable, and rotating guards

Scope of Delivery:

Actuator not included.

Slot seal for dust-tight covering of unused opening

Note:

Cutting-clamp technology allows easy connection of flexible wires without ferrules.

Type: AZ17-02ZK
