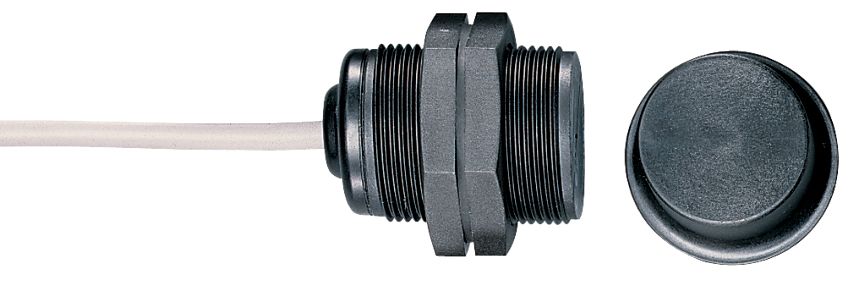

Schmersal BNS 303-11z Safety Sensor, BNS 303-11z
|
60,95 EUR |
|||||||||||
|
( 72,53 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 111006 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101115682 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101115682:
Product description in English:
The magnetic safety sensor BNS 303-11Z is a reliable solution for monitoring protective devices in industrial applications. With its low coding level according to EN ISO 14119 and a robust fiberglass-reinforced thermoplastic housing, it meets the requirements for durable and safe monitoring systems. The sensor operates on a magnetic principle and allows for quasi-flush installation.
With a secure switching distance of 5 mm (ON) and 15 mm (OFF), the sensor offers high operational safety. The 4-core connection cable with a cross-section of 0.25 mm² (23 AWG) and a PVC sheath ensures easy integration into existing control systems. A B10D value of 25 million switching cycles and a service life of 20 years guarantee high reliability in operation.
Featuring an IP67 protection rating, the BNS 303-11Z is optimally protected against dust and moisture. Its compact design, including an ISO thread M30 and a sensor length of 44 mm, simplifies installation. The sensor comes with mounting material, while the corresponding actuator is sold separately.
Technical specifications:
Ordering information:
- Product designation: BNS 303-11Z
- Article number: 101115682
- EAN: 4030661049052
- eCl@ss number: 27-27-44-01
- ETIM number: EC002544
Approvals and certifications:
- Certifications: cULus
- Standards: BG-GS-ET-14, EN IEC 60947-5-3
Mechanical specifications:
- Operating principle: Magnetic
- Dimensions: ISO thread M30, Length 44 mm
- Protection class: IP67
- Cable length: 1 m, Wire cross-section: 0.25 mm² (23 AWG)
- Switching distances: Sao = 5 mm, Sar = 15 mm
- Tightening torque for nuts: max. 3 Nm
Electrical specifications:
- Switching voltage: max. 100 VAC / 100 VDC
- Switching current: max. 0.4 A
- Switching power: max. 10 W
- Switching elements: 1 normally open (NO), 1 normally closed (NC)
Environmental conditions:
- Ambient temperature: -25 °C to +70 °C
- Vibration resistance: 10–55 Hz, amplitude 1 mm
- Shock resistance: 30 g / 11 ms
Scope of delivery:
- Safety sensor BNS 303-11Z
- 2 fastening nuts M30 x 1.5
- Note: Actuator not included
Recommended accessories:
- Actuators: BPS 300, BPS 303, BPS 303 SS
- Safety control units: SRB 301AN, SRB-E-301ST, SRB-E-201LC
Type: BNS 303-11z
Questions & answers
What is the delivery time of Schmersal BNS 303-11z Safety Sensor, BNS 303-11z?
The article Schmersal BNS 303-11z Safety Sensor, BNS 303-11z is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101115682 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal BNS 303-11z Safety Sensor, BNS 303-11z always at the best possible price. We can give you a discount of 2% on Schmersal BNS 303-11z Safety Sensor, BNS 303-11z if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Schmersal BNS 303-11z Safety Sensor, BNS 303-11z we can offer you a price of 60,04 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
