Schmersal IFL 2-6.5M-10P Indian proximity switch 3L DC cylinder smooth 101112854
|
83,20 EUR |
|||||||||||
|
( 99,01 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1312629 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101112854 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101112854:
Product Description in English:

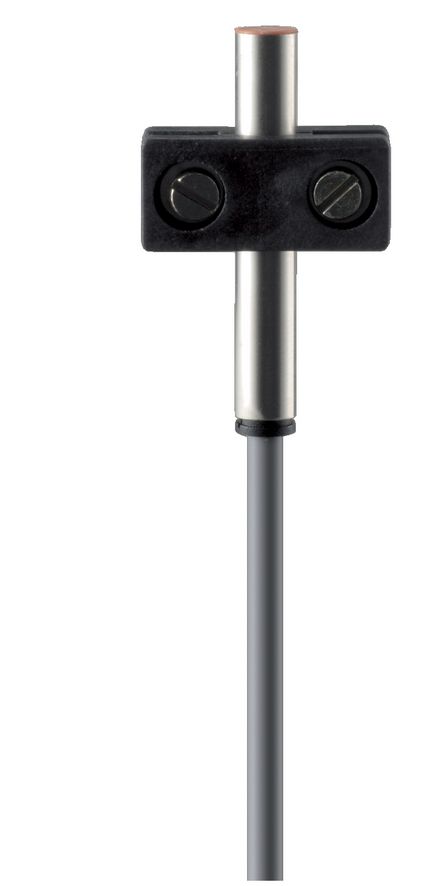

The IFL 2-6,5M-10P is a compact inductive proximity sensor designed for flush installation, making it ideal for tight applications. Its robust nickel-plated brass housing ensures durability and protection in demanding industrial environments. With a switching frequency of up to 3,000 Hz and a reliable yellow LED status indicator, the sensor offers fast and precise object detection. The integrated protective circuit safeguards against overload, short circuits, and reverse polarity.
Technical Data:
Product Type Designation:
- IFL 2-6,5M-10P
Order Number:
- 101112854
EAN:
- 4030661085463
Approvals and Standards:
- Standards: - DIN VDE 0660-208
- Housing Design: Cylinder, smooth
- Installation Conditions: Flush
- Materials: - Housing: Brass, Nickel-Plated
- Gross Weight: 66 g
- EN IEC 60947-5-2
General Data:
- Clamping Bracket: Thermoplastic
Features:
- Integrated Status Indicator: Yellow LED
- Number of Wires: 3
Mechanical Data:
- Nominal Sensing Distance Sn: 2 mm
Connection Technology:
- Cable Length: 2 m
- Connection Type: Cable
- Core Cross-Section: 0.14 mm²
- Cable Sheath Material: PVC
Dimensions:
- Diameter: 6.5 mm
- Length: 42 mm
Environmental Conditions:
- Protection Rating: IP67
- Operating Temperature: -25 ... +70 °C
- Vibration Resistance: 10 … 55 Hz, Amplitude 1 mm
- Shock Resistance: 30 g / 11 ms
Electrical Data:
- Voltage Range: DC
- Idle Current I0, Typical: 3.4 mA
- Operating Voltage: 10 ... 30 VDC
- Operating Current: 200 mA
- Switching Element: Normally Open (NO)
- Protective Circuits: - Induction Protection
- Switching Frequency: Approx. 3,000 Hz
- Reverse Polarity Protection
- Overload Protection
- Short Circuit Protection
Digital Outputs:
- Voltage Drop Ud, Max: 1.2 V
- Current at Ud: 0.2 A
- Switching Elements: PNP
Scope of Delivery:
- Includes Clamping Bracket H 6.5
Type: IFL 2-6,5M-10P
Questions & answers
What is the delivery time of Schmersal IFL 2-6.5M-10P Indian proximity switch 3L DC cylinder smooth 101112854?
The article Schmersal IFL 2-6.5M-10P Indian proximity switch 3L DC cylinder smooth 101112854 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101112854 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal IFL 2-6.5M-10P Indian proximity switch 3L DC cylinder smooth 101112854 always at the best possible price. We can give you a discount of 2% on Schmersal IFL 2-6.5M-10P Indian proximity switch 3L DC cylinder smooth 101112854 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Schmersal IFL 2-6.5M-10P Indian proximity switch 3L DC cylinder smooth 101112854 we can offer you a price of 81,95 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
