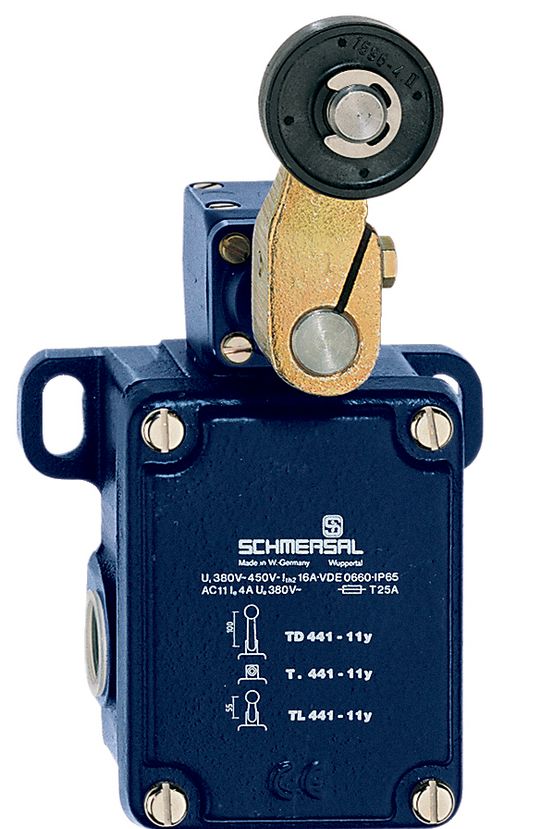

Schmersal TL 441-11Y position switch medium heavy roller swivel h.101059310
|
243,47 EUR |
|
|
( 289,73 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1311759 |
|---|---|
| Mfg Part No: | 101059310 |
| Weight: | 0 kg |
Product information for Schmersal 101059310:
The TL 441-11Y is a mechanical position switch with a roller lever. It features a robust zinc-coated cast iron housing, which is painted for additional durability. Designed for demanding industrial applications, it offers a mechanical lifetime of at least 10 million operations and an IP65 protection rating for use in harsh environments.
Technical Data:
Product Designation:
- TL 441-11Y
Article Number:
- 101059310
EAN:
- 4030661035482
eCl@ss Numbers:
- Version 12.0: 27-27-06-01
- Version 11.0: 27-27-06-01
- Version 9.0: 27-27-06-01
ETIM Numbers:
- Version 7.0: EC000030
- Version 6.0: EC000030
Approvals - Regulations:
- Certificates: INMETRO, CCC
- Standards: EN IEC 60947-5-1
General Data:
- Operating Principle: mechanical
- Actuator Form: Roller
- Housing Material: Zinc-coated cast iron
- Housing Coating Material: Painted
- Gross Weight: 1.772 kg
Features:
- Number of Normally Open Contacts: 1
- Number of Normally Closed Contacts: 1
Safety Considerations - Safety Outputs:
- B10D NC Contacts: 2,000,000 operations
Mechanical Data:
- Actuator Type: Roller lever
- Roller Material: Plastic
- Mechanical Lifetime, min.: 10,000,000 operations
- Approach Angle: - From left: 30°
- Contact Gap Width: 2 x 2.5 mm
- Operating Speed: - Minimum: 1 mm/min
- Note: Operating speed at vertical approach angle
- From right: 30°
- Maximum: 3 m/s
Connection Technology:
- Connection Type: Screw Connection M20 x 1.5
- Connection Cross-Section: - Minimum: 1.5 mm²
- Wire Cross-Section: 13 AWG
- Maximum: 2.5 mm² (incl. ferrules)
Dimensions:
- Sensor Length: 63 mm
- Sensor Width: 106 mm
- Sensor Height: 192 mm
- Roller Width: 9 mm
- Roller Diameter: 36 mm
Environmental Conditions:
- Protection Class: IP65
- Ambient Temperature: -30 ... +90 °C
Insulation Properties:
- Rated Insulation Voltage Ui: 250 VAC, 400 V
- Rated Impulse Voltage Uimp: 6 kV
Electrical Data:
- Thermal Continuous Current: 16 A
- Voltage, Utilization Category AC-15: 400 VAC
- Current, Utilization Category AC-15: 4 A
- Switching Element: Normally Open (NO), Normally Closed (NC), with double interruption
- Switching Principle: Slow Action
- Bouncing Time, max.: 5 ms
- Electrical Contact Material: Silver
Type: TL 441-11Y
Questions & answers
What is the delivery time of Schmersal TL 441-11Y position switch medium heavy roller swivel h.101059310?
The article Schmersal TL 441-11Y position switch medium heavy roller swivel h.101059310 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101059310 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal TL 441-11Y position switch medium heavy roller swivel h.101059310 always at the best possible price. We can give you a discount of 2% on Schmersal TL 441-11Y position switch medium heavy roller swivel h.101059310 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
