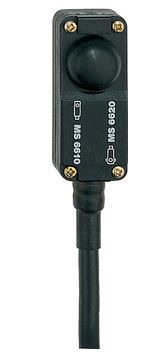

Schmersal M2S 6610-11-KZ position switch 101055456
|
52,26 EUR |
|||||||||||
|
( 62,19 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1312642 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101055456 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101055456:
The position switch M2S 6610-11-K-Z by Schmersal is a precise switch designed for position monitoring in industrial applications. With a high mechanical lifespan of at least 3 million switching cycles and a repeat accuracy of 0.05 mm, it is ideal for use in demanding and dynamic processes.
The housing is made of glass fiber-reinforced thermoplastic, making the switch particularly robust and durable. Thanks to its IP67 protection rating, it is fully protected against dust and water ingress. The switch features one normally closed (NC) and one normally open (NO) contact, operating on a snap-action switching mechanism with friction contact, ensuring precise switching even in frequent use.
The position switch operates in a temperature range from -30 to +80 °C and offers a rated insulation voltage of 250 VAC and a surge voltage resistance of 4 kV. The electrical connection is made via an H05VV-F cable with a cross-section of 3 x 0.75 mm², ensuring easy installation.
The contacts are made of gold-plated silver (AgNi 15 + Au 0.3 µm), ensuring high conductivity and reliable performance. With a maximum switching frequency of 30,000 operations per hour, the position switch is well-suited for highly dynamic applications.
### Technical Data:
Product type designation:
- M2S 6610-11-K-Z
Article number:
- 101055456
EAN:
- 4030661006086
Approvals:
- CCC
Standards:
- EN IEC 60947-5-1
Housing:
- Material: Plastic, glass fiber-reinforced thermoplastic
- Protection rating: IP67
Mechanical Data:
- Number of normally closed contacts: 1
- Number of normally open contacts: 1
- Mechanical lifespan: minimum 3,000,000 switching cycles
- Minimum actuation speed: 10 mm/min
- Switching point repeat accuracy: 0.05 mm
Connection Technology:
- Connection type: H05VV-F 3 x 0.75 mm²
- Wire cross-section: 0.75 mm²
Environmental Conditions:
- Protection rating: IP67
- Operating temperature: -30 ... +80 °C
Insulation Values:
- Rated insulation voltage Ui: 250 VAC
- Rated impulse withstand voltage Uimp: 4 kV
Electrical Data:
- Thermal continuous current: 4 A
- Voltage, utilization category AC-15: 230 VAC
- Current, utilization category AC-15: 1 A
- Switching principle: Snap-action with friction contact
- Maximum switching frequency: 30,000 operations per hour
- Contact material: Silver, gold-plated (AgNi 15 + Au 0.3 µm)
### Scope of Delivery:
- 1x Position Switch M2S 6610-11-K-Z
- User manual
Type: M2S 6610-11-K-Z
Questions & answers
What is the delivery time of Schmersal M2S 6610-11-KZ position switch 101055456?
The article Schmersal M2S 6610-11-KZ position switch 101055456 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101055456 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal M2S 6610-11-KZ position switch 101055456 always at the best possible price. We can give you a discount of 2% on Schmersal M2S 6610-11-KZ position switch 101055456 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Schmersal M2S 6610-11-KZ position switch 101055456 we can offer you a price of 50,69 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
