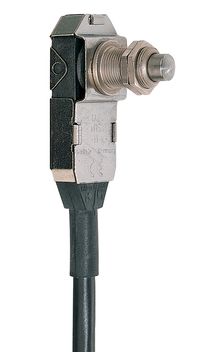

Schmersal M1S 660-11-KY position switch 101055425
|
65,28 EUR |
|||||||||||
|
( 77,68 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1312644 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101055425 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101055425:
The position switch features one NC contact and one NO contact. The electrical contacts are made of high-quality, gold-plated silver (AgNi 15 + Au 0.3 µm), ensuring long-lasting and stable switching operations.
With a mechanical lifespan of at least 3 million switching cycles and a snap-action switching mechanism with friction contact, the M1S 660-11-K-Y is particularly durable and suitable for a maximum switching frequency of 30,000 operations per hour.
The switch comes with a 0.5-meter H05VV-F cable, making it easy to install. Additionally, the position switch is certified with an IP65 protection rating and can operate in a temperature range from -30 °C to +80 °C.
Technical Data:
Product Type Designation:
M1S 660-11-K-Y
Article Number (Order Number):
101055425
EAN (European Article Number):
4030661005645
eCl@ss Numbers:
Version 12.0: 27-27-06-01
Version 11.0: 27-27-06-01
Version 9.0: 27-27-06-01
ETIM Numbers:
Version 7.0: EC000030
Version 6.0: EC000030
General Data:
Standards:
EN IEC 60947-5-1
Gross Weight:
75 g
General Data - Properties:
Number of NC Contacts:
1
Number of NO Contacts:
1
Mechanical Data:
Mechanical Lifespan, Minimum:
3,000,000 switching cycles
Actuation Speed, Minimum:
1 mm/min
Mechanical Data - Connection Technology:
Cable Length:
0.5 m
Cable Designation:
H05VV-F
Conductor Cross-Section:
0.75 mm²
Environmental Conditions:
Degree of Protection:
IP65
Ambient Temperature:
-30 ... +80 °C
Environmental Conditions - Insulation Ratings:
Rated Insulation Voltage Ui:
250 VAC
Rated Impulse Withstand Voltage Uimp:
4 kV
Electrical Data:
Thermal Continuous Current:
4 A
Voltage, Utilization Category AC-15:
230 VAC
Current, Utilization Category AC-15:
1 A
Switching Principle:
Snap-action with friction contact
Maximum Switching Frequency:
30,000 /h
Material of Electrical Contacts:
Silver, gold-plated (AgNi 15 + Au 0.3 µm)
K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, 42279 Wuppertal
The provided data has been carefully checked. Images may differ from the original. Further technical details can be found in the user manual. Subject to technical changes and errors.
Type: M1S 660-11-K-Y
Questions & answers
What is the delivery time of Schmersal M1S 660-11-KY position switch 101055425?
The article Schmersal M1S 660-11-KY position switch 101055425 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101055425 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal M1S 660-11-KY position switch 101055425 always at the best possible price. We can give you a discount of 2% on Schmersal M1S 660-11-KY position switch 101055425 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Schmersal M1S 660-11-KY position switch 101055425 we can offer you a price of 64,30 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
