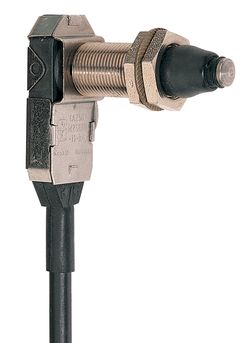

Schmersal M2R 660-11-KY position switch 101055396

The M2R 660-11-K-Y from Schmersal is a compact and robust position switch, ideal for industrial applications. The switch complies with EN IEC 60947-5-1 and offers a high mechanical lifespan of at least 3 million switching cycles.

The M2R 660-11-K-Y features one NC contact and one NO contact. The contacts are made of high-quality gold-plated silver (AgNi 15 + Au 0.3 µm), ensuring high reliability and long service life.

Thanks to its snap-action switching mechanism with friction contact, the switch provides precise switching operations with a maximum switching frequency of 30,000 operations per hour. The switch comes with a 0.5-meter H05VV-F cable, making installation simple and convenient.

The position switch has an IP65 protection rating, providing protection against dust and water jets. It can operate in a temperature range of -30 °C to +80 °C, making it suitable for harsh environments.
Technical Data:

Product Type Designation:

M2R 660-11-K-Y

Article Number (Order Number):

101055396

EAN (European Article Number):

4030661005331

eCl@ss Numbers:

Version 12.0: 27-27-06-01
Version 11.0: 27-27-06-01
Version 9.0: 27-27-06-01

ETIM Numbers:

Version 7.0: EC000030
Version 6.0: EC000030

General Data:

Standards:

EN IEC 60947-5-1

Gross Weight:

108 g

General Data - Properties:

Number of NC Contacts:

1

Number of NO Contacts:

1

Mechanical Data:

Mechanical Lifespan, Minimum:

3,000,000 switching cycles

Actuation Speed, Minimum:

1 mm/min

Mechanical Data - Connection Technology:

Cable Length:

0.5 m

Cable Designation:

H05VV-F

Conductor Cross-Section:

0.75 mm²

Environmental Conditions:

Degree of Protection:

IP65

Ambient Temperature:

-30 ... +80 °C

Environmental Conditions - Insulation Ratings:

Rated Insulation Voltage Ui:

250 VAC

Rated Impulse Withstand Voltage Uimp:

4 kV

Electrical Data:

Thermal Continuous Current:

4 A

Voltage, Utilization Category AC-15:

230 VAC

Current, Utilization Category AC-15:

1 A

Switching Principle:

Snap-action with friction contact

Maximum Switching Frequency:

30,000 /h

Material of Electrical Contacts:

Silver, gold-plated (AgNi 15 + Au 0.3 µm)
Type: M2R 660-11-K-Y
