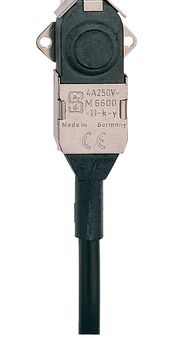

Schmersal MS6600-11-KY position switch 101055354
|
48,44 EUR |
|||||||||||
|
( 57,64 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1312646 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101055354 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101055354:
The position switch MS 6600-11-K-Y from Schmersal is a compact, reliable switch designed for position monitoring in industrial applications. It is specifically developed for use in demanding environments where precise detection of switching positions is required. The switch offers a high mechanical lifespan of at least 3 million switching cycles, making it suitable for intensive operations.
The position switch features one normally closed (NC) and one normally open (NO) contact and operates using a snap-action switching mechanism with friction contact, ensuring fast and precise switching. With an IP65 protection rating, the housing is resistant to dust and water jets, making it ideal for use in harsh industrial environments.
The robust connection cable of type H05VV-F with a cross-section of 0.75 mm² allows for easy installation. The position switch can operate in a temperature range from -30 to +80 °C and is rated for an insulation voltage of 250 VAC and a surge voltage resistance of 4 kV.
The switch's contacts are made of gold-plated silver (AgNi 15 + Au 0.3 µm), ensuring high conductivity and reliable operation. With a maximum switching frequency of 30,000 operations per hour, the switch is well-suited for dynamic processes in automation technology.
### Technical Data:
Product type designation:
- MS 6600-11-K-Y
Article number:
- 101055354
EAN:
- 4030661004730
Approvals:
- CCC
Standards:
- EN IEC 60947-5-1
General Data:
- Gross weight: 57 g
Mechanical Data:
- Number of normally closed contacts: 1
- Number of normally open contacts: 1
- Mechanical lifespan: minimum 3,000,000 switching cycles
- Minimum actuation speed: 1 mm/min
Connection Technology:
- Connection type: H05VV-F
- Wire cross-section: 0.75 mm²
Environmental Conditions:
- Protection rating: IP65
- Operating temperature: -30 ... +80 °C
Insulation Values:
- Rated insulation voltage Ui: 250 VAC
- Rated impulse withstand voltage Uimp: 4 kV
Electrical Data:
- Thermal continuous current: 4 A
- Voltage, utilization category AC-15: 230 VAC
- Current, utilization category AC-15: 1 A
- Switching principle: Snap-action with friction contact
- Maximum switching frequency: 30,000 operations per hour
- Contact material: Silver, gold-plated (AgNi 15 + Au 0.3 µm)
### Scope of Delivery:
- 1x Position Switch MS 6600-11-K-Y
- User manual
Type: MS 6600-11-K-Y
