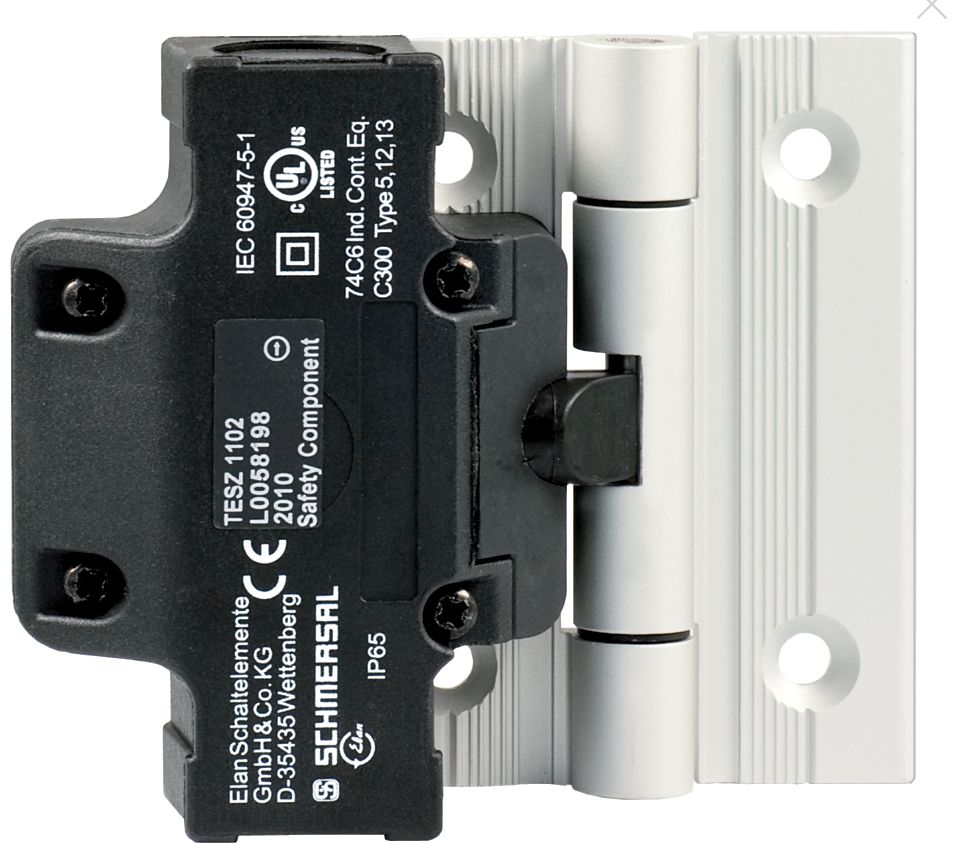

Schmersal 101029153 TESZ 1102/S hinge safety switch content_copy

The TESZ1102/S hinge switch is a reliable safety solution for monitoring hinged doors and flaps. With a durable housing made of glass-fiber-reinforced thermoplastic and a robust aluminum hinge, it is ideal for industrial applications. The switch provides two safety contacts and one auxiliary contact and is highly durable with an IP65 protection rating and a mechanical lifespan of at least 1,000,000 switching cycles.

Technical Data:

Product Designation:

• TESZ1102/S

Article Number:

• 101029153

EAN:

• 4030661448954

eCl@ss Numbers:

• Version 12.0: 27-27-06-09
• Version 11.0: 27-27-06-09
• Version 9.0: 27-27-06-09

ETIM Numbers:

• Version 7.0: EC002591
• Version 6.0: EC002591

Approvals - Regulations:

• Certificates: cULus, CCC
• Standards: BG-GS-ET-15, EN IEC 60947-5-1

General Data:

• Housing Material: Plastic, glass-fiber-reinforced thermoplastic, self-extinguishing
• Hinge Material: Aluminum
• Gross Weight: 281 g

Features:

• Mounting Hinge: Yes
• Number of Auxiliary Contacts: 1
• Number of Safety Contacts: 2

Safety Considerations:

• Standards: EN ISO 13849-1
• Service Life: 20 years

Safety Considerations - Safety Outputs:

• B10D Opener (NC): 2,000,000 switching cycles
• B10D Closer (NO): 1,000,000 switching cycles

Mechanical Data:

• Mechanical Lifespan, Minimum: 1,000,000 switching cycles
• Forced Opening Angle: 14°
• Forced Opening Force, Minimum: 1 N

Mechanical Data - Connection Technology:

• Connection Type: Screw Connection M20 x 1.5
• Connection Cross-Section, Min./Max.: 0.5 mm² / 1 mm²
• Note: All specifications including ferrules.

Mechanical Data - Dimensions:

• Length x Width x Height: Suitable for profile systems: 40 mm
• Sensor Length: 36 mm
• Sensor Width: 111.5 mm
• Sensor Height: 92 mm

Environmental Conditions:

• Protection Rating: IP65
• Ambient Temperature: -25 ... +65 °C

Environmental Conditions - Insulation Ratings:

• Rated Insulation Voltage Ui: 250 VAC
• Rated Impulse Withstand Voltage Uimp: 2.5 kV

Electrical Data:

Thermal Continuous Current: 2.5 A

Voltage, Utilization Category AC-15: 230 VAC

Current, Utilization Category AC-15: 2 A

Voltage, Utilization Category DC-13: 24 VDC

Current, Utilization Category DC-13: 1 A

Switching Element: Closer (NO), Opener (NC)

Switching Principle: Slow-action

Maximum Switching Frequency: 120 /h

Contact Material, Electrical: Silver

Note:

The factory-set opening angle is 4°.

The additional hinge with mounting material is also available separately under the order designation TES/S.
