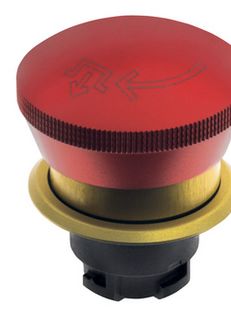

Schmersal EDRR40.VHRT EMERGENCY STOP button red 101024290
|
38,77 EUR 40,45 EUR |
|
|
( 46,14 EUR incl. VAT ) ≈ £33.34 | ≈ $44.20 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1331037 |
|---|---|
| Mfg Part No: | 101024290 |
| Weight: | 0.123 kg |
Product information for Schmersal 101024290:
The EDRR40.VHRT is a robust and reliable emergency stop push button with a twist-pull release mechanism. Featuring a red aluminum cap and a 30.5 mm mounting diameter, it ensures quick and easy installation for safety-critical applications. Its latching mechanism and full insulation offer secure operation. The button is suitable for harsh environments thanks to its IP65 protection rating and resistance to shock and vibration.
Technical Data:
Product Designation:
- EDRR40.VHRT
Article Number:
- 101024290
EAN:
- 4030661521183
eCl@ss Numbers:
- Version 12.0: 27-37-12-12
- Version 11.0: 27-37-12-12
- Version 9.0: 27-37-12-12
ETIM Numbers:
- Version 7.0: EC001038
- Version 6.0: EC001038
Approvals - Regulations:
- Certificates: cULus
- Standards: EN ISO 13850, EN IEC 60947-5-5
General Data:
- Design: Push Button
- Shape: Round
- Operating Head Material: Aluminum
- Operating Head Color: Red
- Gross Weight: 86 g
Features:
- Safety Functions: Yes
- Built-In Snap Mechanism: No
- External Snap Mechanism: Yes
- Latching Present: Yes
- Full Insulation: Yes
Mechanical Data:
- Release Mechanism: Twist-Pull Release
- Minimum Mechanical Lifespan: 100,000 operations
- Actuation Travel: 5 mm
- Mounting: Flange Mount
- Screw Tightening Torque: 0.6 Nm
Dimensions:
- Height: 29 mm
- Installation Depth: Depth behind the front panel, including one contact element
- Cap Diameter: 38.5 mm
- Mounting Diameter: 30.5 mm
- Front Plate Thickness (min./max.): 1.5 mm / 6 mm
Environmental Conditions:
- Protection Class: IP65
- Ambient Temperature: -25 ... +80 °C
- Vibration Resistance: 5 g
- Shock Resistance: <50 g (EN 60068-2-27)
Electrical Data:
- Maximum Switching Frequency: 600 /h
Type: EDRR40.VHRT
Questions & answers
What is the delivery time of Schmersal EDRR40.VHRT EMERGENCY STOP button red 101024290?
The article Schmersal EDRR40.VHRT EMERGENCY STOP button red 101024290 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101024290 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal EDRR40.VHRT EMERGENCY STOP button red 101024290 always at the best possible price. We can give you a discount of 2% on Schmersal EDRR40.VHRT EMERGENCY STOP button red 101024290 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
